X6 E71 X6 40dX Rear door - hinge/door brake

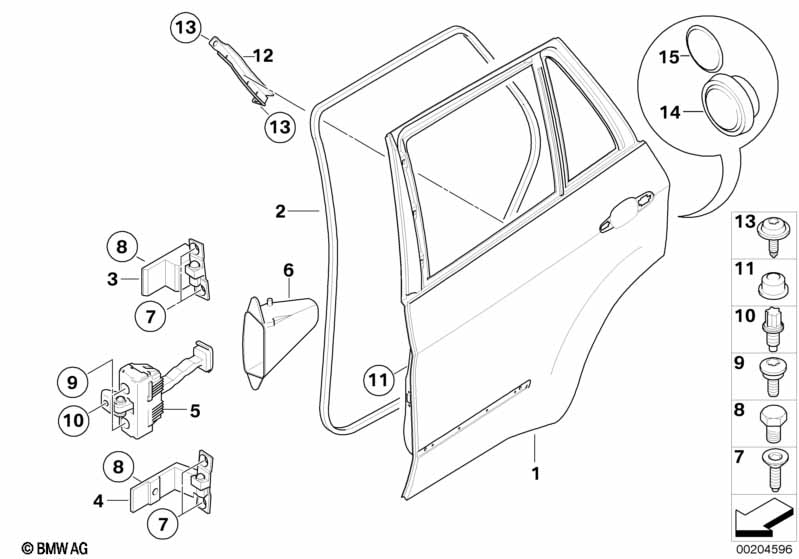

Rear door - hinge/door brake
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Door rear left 1 41527198161 $992.10
only in conjunction with
-- Crash reinforcement, left 1 41007286319
-- Torx screw with collar M8X20 T30 2 07147124309 $0.80
01 Door rear right 1 41527198162 $992.10
only in conjunction with
-- Crash reinforcement, right 1 41007286320
-- Torx screw with collar M8X20 T30 2 07147124309 $0.80
02 Door weatherstrip rear left 1 51767221843 $135.66
02 Door weatherstrip rear right 1 51767221844 $135.66
03 Left upper rear door hinge 1 41527200241 $35.79
03 Right upper rear door hinge 1 41527200242 $35.79
04 Left lower rear door hinge 1 41527201301 $34.70
04 Right lower rear door hinge 1 41527201302 $34.70
05 Rear door brake 1 51227180002 $47.23
06 Left rear door brake grommet 1 51227198267 $7.65
06 Right rear door brake grommet 1 51227198268 $7.65
07 Torx-countersunk head screw ISA M8X28 2 07147184164 $0.65
08 Hexagon screw with taper M12X39 1 01/2018 07147184165 $1.55
08 Hexagon screw with taper M12X35 1 07148499258
09 Torx-bolt with washer ISA M6X10 2 07147184168 $0.62
10 Torx-bolt with washer ASA M8X22 1 07147248303 $0.60
11 Protection cap SCHWARZ 1 51218177670 $0.33
12 Crash reinforcement, right 1 12/2010 41527195542 $82.78 ENDED
12 Crash reinforcement, right 1 41007286320
12 Crash reinforcement, left 1 41007286319
13 Torx screw with collar M8X20 T30 2 07147124309 $0.80
Notes
  • ENDED = the part has been discontinued (no longer available).
