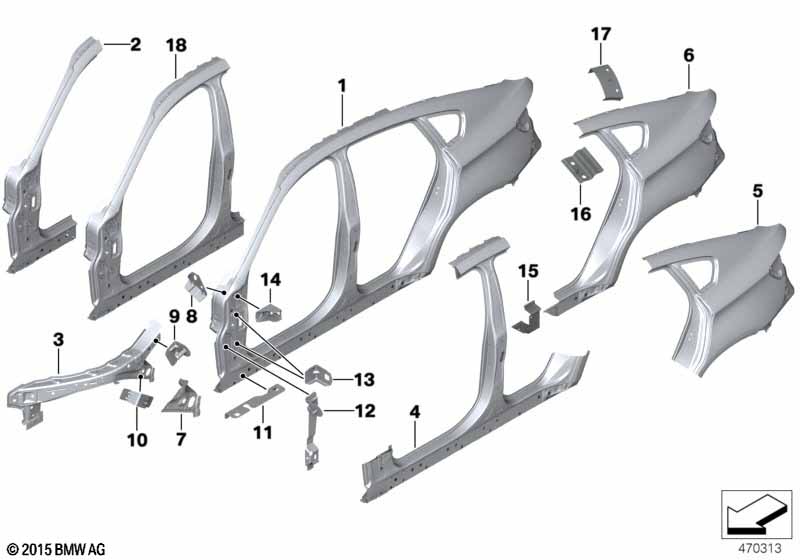

X6 E71 X6 40dX Body-side frame

Body-side frame
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles up to 10/08
Refer to ITU 61_2257
01 Side frame, exterior, left 1 41217182727 $3738.94 +core
only in conjunction with
01 Side frame, exterior, right 1 41217182728 $3738.94 +core
only in conjunction with
-- Blind rivet nut, flat headed M5 1 61136954561 $0.63
Required for repair
-- Positioning aid T-bolt 1 41212460208
-- T-welding stud L=5,4MM 20 41318412638
-- Hexagon screw with taper M12X35 4 07148499258
02 Left exterior column A 1 41217182719 $2145.70 +core
02 Column A exterior right 1 41217182720 $2145.70 +core
03 Supporting strut, left 1 41117174273 $299.59
03 Supporting strut, right 1 41117174274 $299.59
04 Column B with left rocker panel 1 01/2008 41217182711 $2516.05 ENDED, +core
04 Side frame, exterior, left 1 41217182727 $3738.94 +core
Required for repair
-- Positioning aid T-bolt 1 41212460208
-- T-welding stud L=5,4MM 20 41318412638
-- Hexagon screw with taper M12X35 4 07148499258
04 Column B with right rocker panel 1 01/2008 41217182712 $2516.05 ENDED, +core
04 Side frame, exterior, right 1 41217182728 $3738.94 +core
Required for repair
-- Positioning aid T-bolt 1 41212460208
-- T-welding stud L=5,4MM 20 41318412638
-- Hexagon screw with taper M12X35 4 07148499258
05 Left rear side panel 1 41217182715 $1813.83 +core
only in conjunction with
-- Blind rivet nut, flat headed M5 1 61136954561 $0.63
Required for repair
-- Blind rivet N3 23 83190301421 $0.31
-- Screw SF PLUS M5X15 1 83190301639 $0.31
-- Body adhesive K5 195 ML 1 83192157298
-- Body adhesive K5 50 ML 1 83192158654
-- Cleaner R1 100ML 1 83192211217
-- Seam sealer 300ML 1 83422409985
-- Punch rivet N4 37 83192457307
-- Positioning aid T-bolt 1 41212460208
-- Layout template, C-pillar, left 1 41212469825
-- Layout template, D-pillar, left 1 41212469827
-- Plastic capnut with washer D=22MM 10 07147169847 $0.36
-- Blind rivet nut with collar M5 1 07147206525 $1.82
-- Reinforcement plate, rocker panel 1 41217275570
-- Reinforcement plate, C-pillar, left 1 41217275589
-- Reinforcement plate, D-pillar, left 1 41217275609
-- T-welding stud L=5,4MM 10 41318412638
05 Right rear side panel 1 41217182716 $1813.83 +core
only in conjunction with
-- Blind rivet nut, flat headed M5 1 61136954561 $0.63
Required for repair
-- Blind rivet N3 23 83190301421 $0.31
-- Screw SF PLUS M5X15 1 83190301639 $0.31
-- Body adhesive K5 195 ML 1 83192157298
-- Body adhesive K5 50 ML 1 83192158654
-- Cleaner R1 100ML 1 83192211217
-- Seam sealer 300ML 1 83422409985
-- Punch rivet N4 37 83192457307
-- Positioning aid T-bolt 1 41212460208
-- Layout template, C-pillar, right 1 41212469826
-- Layout template, D-pillar, right 1 41212469828
-- Plastic capnut with washer D=22MM 10 07147169847 $0.36
-- Blind rivet nut with collar M5 1 07147206525 $1.82
-- Reinforcement plate, rocker panel 1 41217275570
-- Reinforcement plate, C-pillar, right 1 41217275588
-- Reinforcement plate, D-pillar, right 1 41217275613
-- T-welding stud L=5,4MM 10 41318412638
Performed using adhesive bonding/
riveting repair method.
only applies to
AW number
41 35 111
06 Right rear side panel 1 41217182716 $1813.83 +core
Required for repair
-- Blind rivet N3 23 83190301421 $0.31
-- Screw SF PLUS M5X15 1 83190301639 $0.31
-- Body adhesive K5 195 ML 1 83192157298
-- Body adhesive K5 50 ML 1 83192158654
-- Cleaner R1 100ML 1 83192211217
-- Seam sealer 300ML 1 83422409985
-- Punch rivet N4 37 83192457307
-- Positioning aid T-bolt 1 41212460208
-- Layout template, C-pillar, right 1 41212469826
-- Layout template, D-pillar, right 1 41212469828
-- Plastic capnut with washer D=22MM 10 07147169847 $0.36
-- Blind rivet nut with collar M5 1 07147206525 $1.82
-- Reinforcement plate, rocker panel 1 41217275570
-- Reinforcement plate, C-pillar, right 1 41217275588
-- Reinforcement plate, D-pillar, right 1 41217275613
-- T-welding stud L=5,4MM 10 41318412638
Performed using adhesive bonding/
riveting repair method.
only applies to
AW number
41 35 101
06 Left rear side panel 1 41217182715 $1813.83 +core
Required for repair
-- Blind rivet N3 23 83190301421 $0.31
-- Screw SF PLUS M5X15 1 83190301639 $0.31
-- Body adhesive K5 195 ML 1 83192157298
-- Body adhesive K5 50 ML 1 83192158654
-- Cleaner R1 100ML 1 83192211217
-- Seam sealer 300ML 1 83422409985
-- Punch rivet N4 37 83192457307
-- Positioning aid T-bolt 1 41212460208
-- Layout template, C-pillar, left 1 41212469825
-- Layout template, D-pillar, left 1 41212469827
-- Plastic capnut with washer D=22MM 10 07147169847 $0.36
-- Blind rivet nut with collar M5 1 07147206525 $1.82
-- Reinforcement plate, rocker panel 1 41217275570
-- Reinforcement plate, C-pillar, left 1 41217275589
-- Reinforcement plate, D-pillar, left 1 41217275609
-- T-welding stud L=5,4MM 10 41318412638
07 Left supporting strut reinforcement 1 41007054475 $71.10
07 Right supporting strut reinforcement 1 41007054476 $71.10
08 Bracket, side panel, top left 1 41117174333 $15.68
08 Bracket, side panel, top right 1 41117174334 $15.68
09 Bracket AFS 1 41117174337 $17.97
10 Bracket AFS 1 41217195241 $45.98
11 Bracket, side panel, entrance left 1 41217195353 $98.37
11 Bracket, side panel, entrance, right 1 41217195354 $98.37
12 Bracket for AFS auxiliary heater 1 41217195249 $85.57
13 Bracket, side panel column A 1 41117174365 $1.85
Required for repair
-- Blind rivet N3 2 83190301421 $0.31
-- Body adhesive K5 50 ML 1 83192158654
-- Cleaner R1 100ML 1 83192211217 EBA 2446652
14 Mounting bracket, sidewall 1 41007054483 $56.87
15 Reinforcement plate, rocker panel 1 41217275570
16 Reinforcement plate, C-pillar, right 1 41217275588
16 Reinforcement plate, C-pillar, left 1 41217275589
17 Reinforcement plate, D-pillar, left 1 41217275609
17 Reinforcement plate, D-pillar, right 1 41217275613
18 Column a with left rocker panel 1 41007467541
Required for repair
18 Column B with right rocker panel 1 41007467542
Required for repair
-- Positioning aid T-bolt 1 41212460208
-- T-welding stud L=5,4MM 10 41318412638
-- Hexagon screw with taper M12X35 2 07148499258
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
  • EBA = Einbauanleitung (Installation instructions)
