X6 E71 X6 40dX Seat, front, seat frame

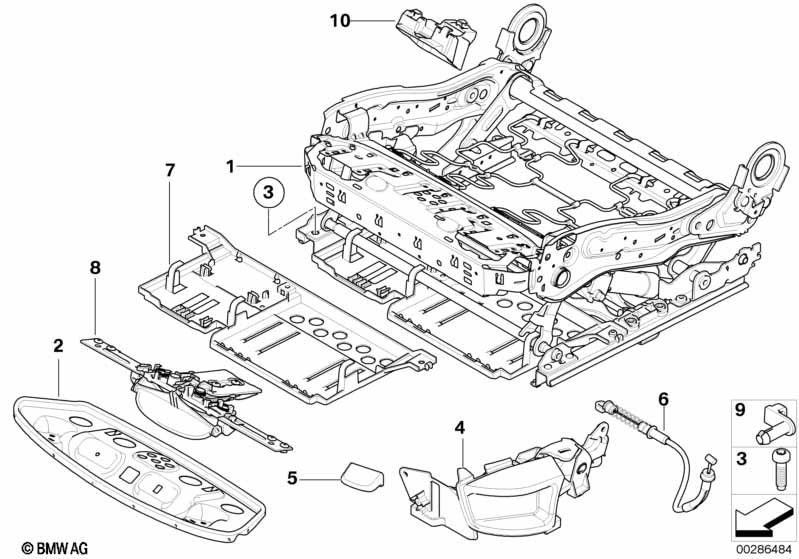

Seat, front, seat frame
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Seat mechanism, semi-electric, left 1 52107250055
01 Seat mechanism, semi-electric, right 1 52107250058
For vehicles with
Seat adjuster, electric, with memory

S459A=Yes
01 Electrical seat mechanism, right 1 52107250062
For vehicles with
Seat adjuster, electric, with memory
Important! please observe PuMA
Measure 46940132.

S459A=Yes
01 Electrical seat mechanism, left 1 52107250059
For vehicles with
Comfort seat with memory

S456A=Yes
01 Electrical seat mechanism, right 1 52107250068
For vehicles with
Comfort seat with memory
Important! please observe PuMA
Measure 46940132.

S456A=Yes
01 Electrical seat mechanism, left 1 52107250067
For vehicles with
Seat adjuster, electric, with memory
and
Sports seat

S459A=Yes

S481A=Yes
01 Electrical seat mechanism, left 1 52107250063
01 Electrical seat mechanism, right 1 52107250064
For vehicles with
Active seat for driver and passenger
and
Comfort seat with memory

S455A=Yes

S456A=Yes
01 Electrical seat mechanism, left 1 52107250069
01 Electrical seat mechanism, right 1 52107250070
For vehicles with
Sports seat

S481A=Yes
02 Seat carrier, front 2 52107114119 $25.41
For vehicles with
Comfort seat with memory

S456A=Yes
02 Seat carrier, front 2 52107075955 $24.97
03 Fillister head screw M10 4 07149203122 $0.75
04 Actuation unit left 1 52107058569 $26.56
04 Actuation unit right 1 52107058570 $26.56
05 Lever left 1 52108150059 $3.91
05 Lever right 1 52108150060 $3.91
06 Bowden cable horizontal adjustment 1 52107068603 $18.93
For vehicles with
Comfort seat with memory
or
Seat adjuster, electric, with memory

S456A=Yes

S459A=Yes
07 Left supporting plate 1 04/2010 52107184349 $45.85
07 Carrier plate, right 1 04/2010 52107184350 $45.85
07 Left supporting plate 1 04/2010 52107253391
07 Carrier plate, right 1 04/2010 52107253392
08 Mechanical system, thigh support 2 52107143536 $108.85
09 Clip 4 52108157406 $3.48
10 Mount, module for seat heater 2 52107262255
