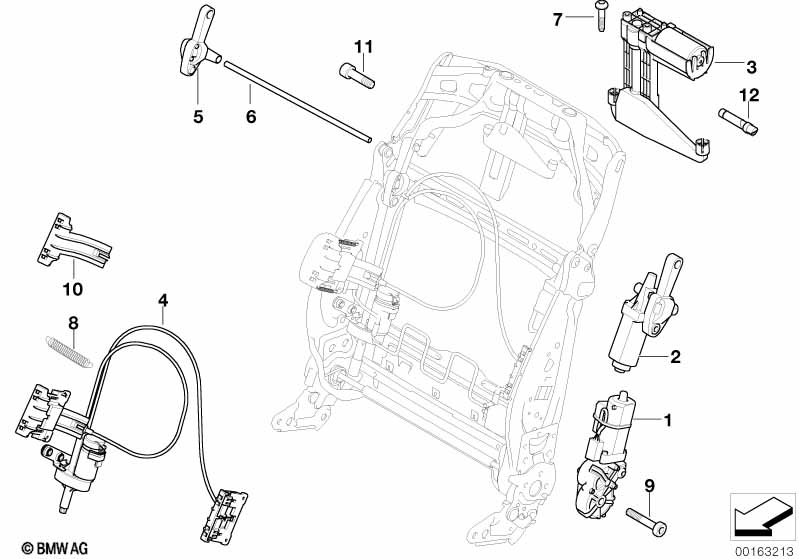

X6 E71 X6 40dX Seat, front, electrical/motors, backrest

Seat, front, electrical/motors, backrest
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Basic seat electric parts
01 Drive, backrest adjustment 1 67317114121 $114.43
For vehicles with
Seat adjuster, electric, with memory
ONLY APPLIES TO CO-DRIVERS SIDE

S459A=Yes
01 Drive, backrest adjustment 1 04/2010 67319146333 $116.19
01 Drive, backrest adjustment 1 04/2010 52109168745 $126.55
For vehicles with
Comfort seat with memory

S456A=Yes
01 Drive, backrest adjustment, memory 1 04/2010 67317075946 $139.48
01 Drive, backrest adjustment, memory 1 04/2010 52109168746 $126.55
For vehicles with
Seat adjuster, electric, with memory
or
Sports seat
ONLY APPLIES TO DRIVER'S SIDE

S459A=Yes

S481A=Yes
01 Drive, backrest adjustment, memory 1 04/2010 67317075946 $139.48
For vehicles with
Seat adjuster, electric, with memory
and
Sports seat
ONLY APPLIES TO DRIVER'S SIDE

S459A=Yes

S481A=Yes
01 Drive, backrest adjustment, memory 1 04/2010 52109168746 $126.55
For vehicles with
Seat adjuster, electric, with memory
and
Sports seat
ONLY APPLIES TO DRIVER'S SIDE

S459A=Yes

S481A=No
01 Drive, backrest adjustment, memory 1 04/2010 52109168746 $126.55
For vehicles with
Seat adjuster, electric, with memory
and
Sports seat
ONLY APPLIES TO DRIVER'S SIDE

S459A=No

S481A=Yes
01 Drive, backrest adjustment, memory 1 04/2010 52109168746 $126.55
For vehicles with
Comfort seat with memory

S456A=Yes
02 Drive, backrest top adjustment, memory 2 67317065193 $118.35
03 Drive,vertical headrest adjustm., memory 1 09/2007 52107111364 $205.37
03 Drive, head restr. hght. adj., Comfort 2 52107253385 ENDED
For vehicles with
Seat adjuster, electric, with memory
or
Sports seat
ONLY APPLIES TO CO-DRIVERS SIDE

S459A=Yes

S481A=Yes
03 Drive, vertical headrest adjustment 1 09/2007 67317121095 $181.13
03 Drive, vertical headrest adjustment 1 09/2007 52109155768 $183.59
For vehicles with
Seat adjuster, electric, with memory
or
Sports seat
ONLY APPLIES TO DRIVER'S SIDE

S459A=Yes

S481A=Yes
03 Drive,vertical headrest adjustm., memory 2 09/2007 67317121096 $221.04
03 Drive,vertical headrest adjustm., memory 1 09/2007 52109155767 $219.99
For vehicles with
Comfort seat with memory

S456A=Yes
04 Drive unit, backrest width adjustment 2 52107005422 $324.12
05 Transmission 2 52107068054 $63.49
06 Flexible shaft 2 52107068055 $31.51
07 Torx bolt M5X25-A2-70 4 07129900395 $1.58
For vehicles with
Comfort seat with memory

S456A=Yes
08 Spring 4 52107068049 $24.27
09 Screw T30 M6X40 4 52107068050 $11.69
For vehicles with
Comfort seat with memory

S456A=Yes
10 Sliding bracket 2 52107116703 $10.38
11 Screw M6 4 67317068056 $11.17
12 Gas cartridge 2 09/2007 52107068057 $112.83
Notes
  • ENDED = the part has been discontinued (no longer available).
