X6 E71 X6 40dX Indiv. rear door trim panel,part.leather

Indiv. rear door trim panel,part.leather
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i ----------------------------------
Important!
Series parts are not possible via this
order no.
.
Since individual vehicles are also
equipped with series parts, it is to be
assured that the spare part needed is
not a series part.
----------------------------------------
Specify when ordering:
.
Spare part for individual vehicle:
- part no.
- dealer no.
- chassis no.
.
Retrofit of an individual part:
- part. no.
- dealer no.
-chassis no.

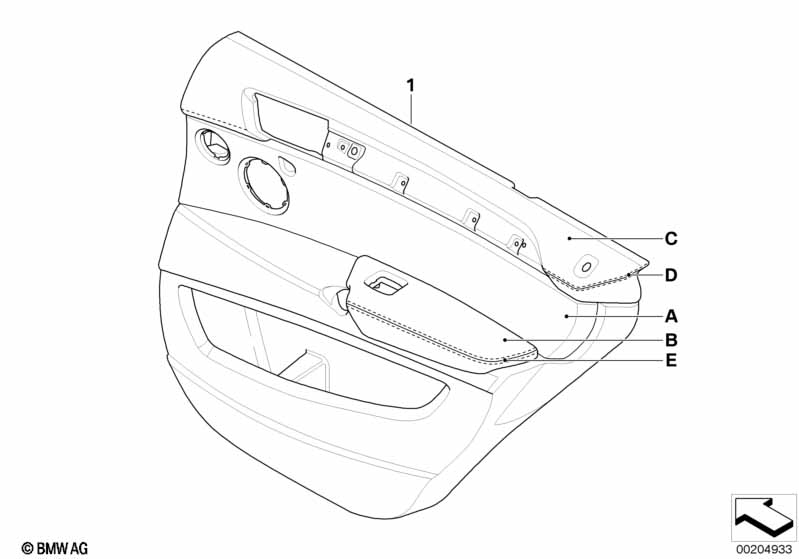

- (A) Part number, leather Merino '70'
(door trim, center)
- (B) Part number, leather Merino '70'
(armrest)
- (C) Part number, leather Walknappa
(door rail)
- (D) Velours (door rail)
- (E) Velours (armrest)
---------------------------
Color, leather door rail and thread:
- black
---------------------------
Remaining door trim as LUSW or LVSW
---------------------------
Also suitable for vehicles without
Option SA 563 lighting package
---------------------------
For vehicles with
special trim (without colour statement)
or
Indi. leather expanded/"champagner"
or
Indi. leather expanded/"syrah-blau"
or
Indi. leather expanded/"schiefer"
or
Indi. leather expended/"criollo-braun"
or
Indi. leather, extended/amaro-braun







































Z1XX=Yes

ZACM=Yes

ZAF3=Yes

ZAP1=Yes

ZAP3=Yes

ZAP5=Yes
For vehicles with
Light package

S563A=Yes
01 Door lining leather rear left INDIVIDUAL 1 10/2008 51427974517 NoS
01 Door lining leather rear right INDIVIDUAL 1 10/2008 51427974518 NoS
For vehicles with
Roller sun vizor, rear door
and
Light package

S417A=Yes

S563A=Yes
01 Door lining leather rear left INDIVIDUAL 1 10/2008 51427974521 NoS
01 Door lining leather rear right INDIVIDUAL 1 10/2008 51427974522 NoS
For vehicles with
Light package
and
HiFi speaker system
and
HiFi System Professional DSP
and
Individual audio system

S563A=Yes

S676A=Yes

S677A=No

S752A=No
01 Door lining leather rear left INDIVIDUAL 1 10/2008 51427974525
01 Door lining leather rear right INDIVIDUAL 1 10/2008 51427974526
For vehicles with
Light package
and
HiFi speaker system
and
HiFi System Professional DSP
and
Individual audio system

S563A=Yes

S676A=No

S677A=Yes

S752A=No
01 Door lining leather rear left INDIVIDUAL 1 10/2008 51427974525
01 Door lining leather rear right INDIVIDUAL 1 10/2008 51427974526
For vehicles with
Light package
and
HiFi speaker system
and
HiFi System Professional DSP
and
Individual audio system

S563A=Yes

S676A=No

S677A=No

S752A=Yes
01 Door lining leather rear left INDIVIDUAL 1 10/2008 51427974525 NoS
01 Door lining leather rear right INDIVIDUAL 1 10/2008 51427974526 NoS
For vehicles with
Roller sun vizor, rear door
and
Light package
and
HiFi speaker system
and
HiFi System Professional DSP
and
Individual audio system

S417A=Yes

S563A=Yes

S676A=Yes

S677A=No

S752A=No
01 Door lining leather rear left INDIVIDUAL 1 10/2008 51427974529
01 Door lining leather rear right INDIVIDUAL 1 10/2008 51427974530
For vehicles with
Roller sun vizor, rear door
and
Light package
and
HiFi speaker system
and
HiFi System Professional DSP
and
Individual audio system

S417A=Yes

S563A=Yes

S676A=No

S677A=Yes

S752A=No
01 Door lining leather rear left INDIVIDUAL 1 10/2008 51427974529
01 Door lining leather rear right INDIVIDUAL 1 10/2008 51427974530
For vehicles with
Roller sun vizor, rear door
and
Light package
and
HiFi speaker system
and
HiFi System Professional DSP
and
Individual audio system

S417A=Yes

S563A=Yes

S676A=No

S677A=No

S752A=Yes
01 Door lining leather rear left INDIVIDUAL 1 10/2008 51427974529
01 Door lining leather rear right INDIVIDUAL 1 10/2008 51427974530
For vehicles with
Roller sun vizor, rear door
and
Light package
and
HiFi speaker system
and
HiFi System Professional DSP
and
Individual audio system

S417A=No

S563A=Yes

S676A=Yes

S677A=No

S752A=Yes
01 Door lining leather rear left INDIVIDUAL 1 10/2008 51427974529 NoS
01 Door lining leather rear right INDIVIDUAL 1 10/2008 51427974530 NoS
Notes
  • NoS = No Stock (Part, central, not in stock.)
