X6 E71 X6 40dX Indi. door trim, all-leather, rear

Indi. door trim, all-leather, rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i ----------------------------------
Important!
Series parts are not possible via this
order no.
.
Since individual vehicles are also
equipped with series parts, it is to be
assured that the spare part needed is
not a series part.
----------------------------------------
Specify when ordering:
.
Spare part for individual vehicle:
- part no.
- dealer no.
- chassis no.
.
Retrofit of an individual part:
- part. no.
- dealer no.
-chassis no.

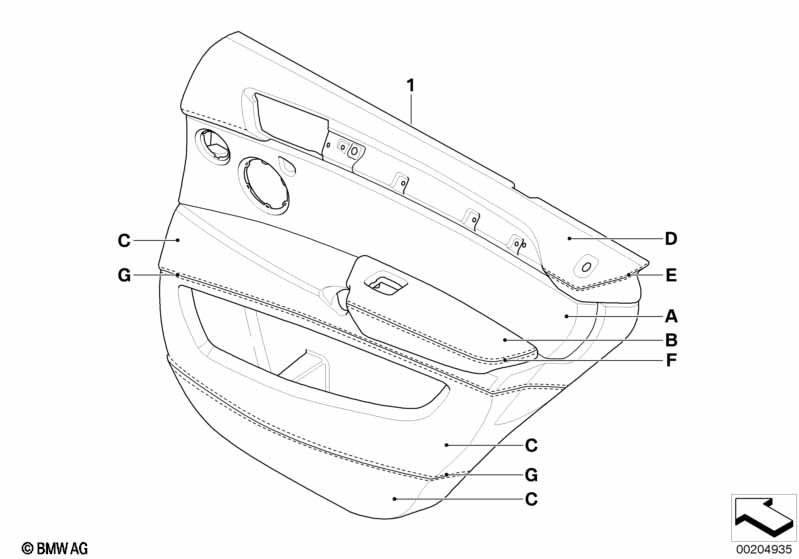

- (A) Teilenummer Leder Merino "70"
(Türblende Mitte)
- (B) Teilenummer Leder Merino "70"
(Armauflage)
- (C) Teilenummer Leder Merino "70"
(Türverkleidung unten)
- (D) Teilenummer Leder Walknappa
(Türbrüstung)
- (E) Steppzwirn (Türbrüstung)
- (F) Steppzwirn (Armauflage)
- (G) Steppzwirn (Türverkleidung unten)
---------------------------
Color, leather door rail and thread:
- black
---------------------------
Remaining door trim as LUSW or LVSW
---------------------------
For vehicles with
special trim (without colour statement)
or
Indi. full leather/"platin/black"
or
Indi. full leather/"champagner"
or
Indi. full leather/"criollo-braun"







































Z1XX=Yes

ZBC8=Yes

ZBCM=Yes

ZBP3=Yes
For vehicles with
Light package

S563A=Yes
01 Door lining leather rear left INDIVIDUAL 1 10/2008 51427974519 NoS
01 Door lining leather rear right INDIVIDUAL 1 10/2008 51427974520 NoS
For vehicles with
Roller sun vizor, rear door
and
Light package

S417A=Yes

S563A=Yes
01 Door lining leather rear left INDIVIDUAL 1 10/2008 51427974523 NoS
01 Door lining leather rear right INDIVIDUAL 1 10/2008 51427974524 NoS
For vehicles with
Light package
and
HiFi speaker system
and
HiFi System Professional DSP
and
Individual audio system

S563A=Yes

S676A=Yes

S677A=No

S752A=No
01 Door lining leather rear left INDIVIDUAL 1 10/2008 51427974527
01 Door lining leather rear right INDIVIDUAL 1 10/2008 51427974528
For vehicles with
Light package
and
HiFi speaker system
and
HiFi System Professional DSP
and
Individual audio system

S563A=Yes

S676A=No

S677A=Yes

S752A=No
01 Door lining leather rear left INDIVIDUAL 1 10/2008 51427974527
01 Door lining leather rear right INDIVIDUAL 1 10/2008 51427974528
For vehicles with
Light package
and
HiFi speaker system
and
HiFi System Professional DSP
and
Individual audio system

S563A=Yes

S676A=No

S677A=No

S752A=Yes
01 Door lining leather rear left INDIVIDUAL 1 10/2008 51427974527 NoS
01 Door lining leather rear right INDIVIDUAL 1 10/2008 51427974528 NoS
For vehicles with
Roller sun vizor, rear door
and
Light package
and
HiFi speaker system
and
HiFi System Professional DSP
and
Individual audio system

S417A=Yes

S563A=Yes

S676A=Yes

S677A=No

S752A=No
01 Door lining leather rear left INDIVIDUAL 1 10/2008 51427974531
01 Door lining leather rear right INDIVIDUAL 1 10/2008 51427974532
For vehicles with
Roller sun vizor, rear door
and
Light package
and
HiFi speaker system
and
HiFi System Professional DSP
and
Individual audio system

S417A=Yes

S563A=Yes

S676A=No

S677A=Yes

S752A=No
01 Door lining leather rear left INDIVIDUAL 1 10/2008 51427974531
01 Door lining leather rear right INDIVIDUAL 1 10/2008 51427974532
For vehicles with
Roller sun vizor, rear door
and
Light package
and
HiFi speaker system
and
HiFi System Professional DSP
and
Individual audio system

S417A=Yes

S563A=Yes

S676A=No

S677A=No

S752A=Yes
01 Door lining leather rear left INDIVIDUAL 1 10/2008 51427974531 NoS
01 Door lining leather rear right INDIVIDUAL 1 10/2008 51427974532 NoS
Notes
  • NoS = No Stock (Part, central, not in stock.)
