Rolls-Royce Phantom Coupé Coupé Engine Block Mounting Parts

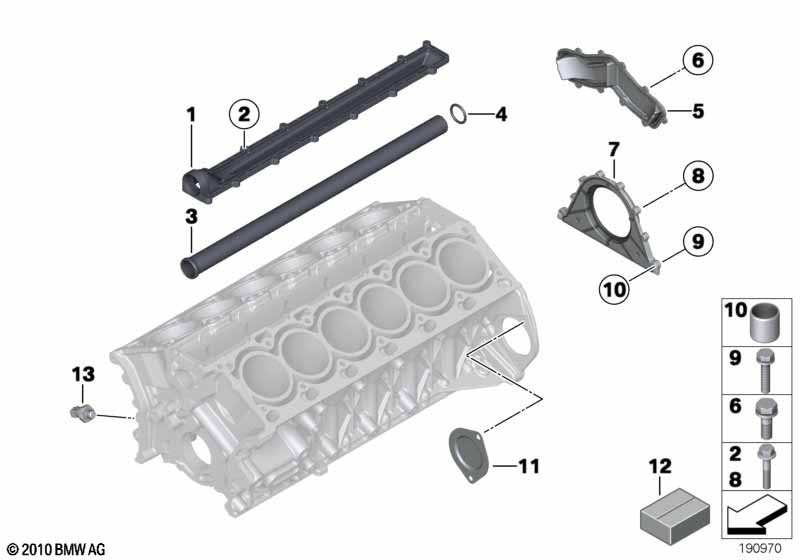

Engine Block Mounting Parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 cap with seal 1 11147506384 $76.03
02 Hex bolt with washer M6X25-ZNNIV SI 14 07119905400 $0.65
03 Coolant pipe, supply line 1 11147500355 $66.83
04 O-ring 34,2X4,0MM 1 11531710048 $2.69
05 End cover, rear 1 05/2017 11147505235 $54.10 ENDED
05 End cover, rear 1 11148483793
06 Hex bolt with washer M6X18-U1 10 07119905399 $0.36
07 Cap with shaft seal 1 11147512101 $86.79
08 Hex bolt with washer M6X25-ZNNIV SI 6 07119905400 $0.65
09 Hex bolt with washer M6X30-Z1 2 11147558183 $0.62
10 Dowel D=8,3MM 2 11121715657 $1.25
11 cap with seal 1 11117507391 $5.46
12 Gasket Set Engine Block Asbesto Free 1 11117521322 $313.19
13 Oil pressure switch M12X1,5 1 12618611273
Notes
  • ENDED = the part has been discontinued (no longer available).
