7' E32 730i Door lining single parts

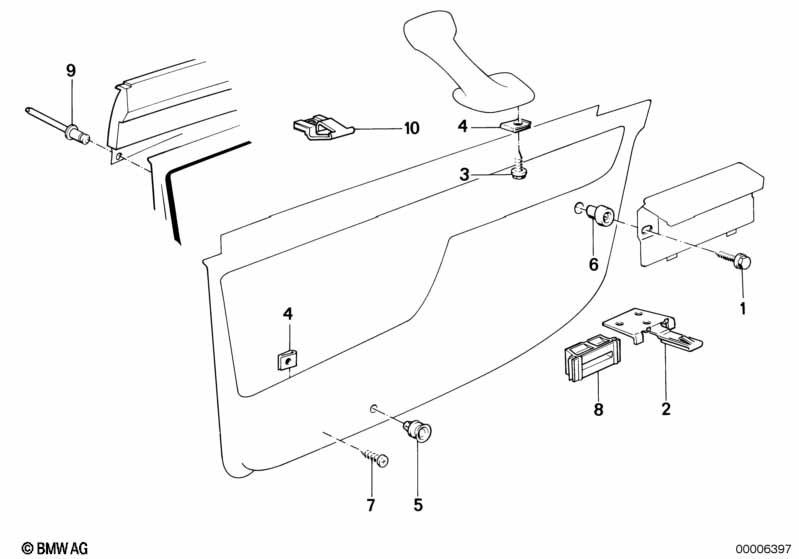

Door lining single parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Hex head screw ST4,8X22-C-Z2 4 07119916944 $0.25
02 Clamp 2 51411949499 $1.69
03 Hex head screw ST4,8X13-C-U1-Z 8 07119906128 $0.18
04 Body nut ST4,8-1 4 01/1992 07129925735 $0.18 ENDED
04 Set body nut 25 ST4,8-1 4 04/1994 07509063124 ENDED
04 Body nut ST4,8-1-ZNS 4 04/1994 07129901647 $0.11 ENDED
04 Body nut ST 4,8 4 04/1994 07129904222 $0.11 ENDED
04 Plug-in nut M5 4 46637651465 $1.29
05 Clamp X 51411870718 $0.24
For vehicles with
All leather equipment

=Yes
05 Clip GRUN X 51418101204 $0.55
06 Nut 2 51411908891 $1.03
07 Fillister head self-tapping screw ST3,5X13-Z2 2 07119907808 $0.11 ENDED
08 Clamp 2 51411949498 $0.95
09 Rivet 4-2A 8 07129948752 $0.19
10 Clamp X 51411908855 $0.61
Notes
  • ENDED = the part has been discontinued (no longer available).
