7' E32 730i Air channel

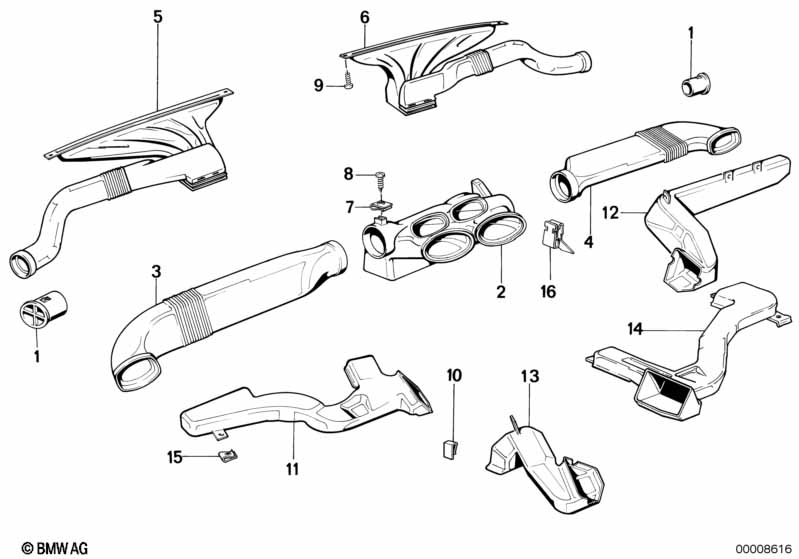

Air channel
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Defroster nozzle 2 51451908968 $4.47
02 Cold air duct center 1 64221908954 $25.28 ENDED
For vehicles with
Air conditioning

=Yes
02 Cold air duct center 1 06/1988 64221948052 $34.88 ENDED
02 Cold air duct center 1 06/1988 64221908954 $25.28 ENDED
03 Cold air duct left 1 64221908955 $9.44 ENDED
04 Cold air duct right 1 64221908956 $12.28 ENDED
05 Defroster nozzle left 1 64221964557 $36.45 ENDED
06 Defroster nozzle right 1 64221964558 $36.45 ENDED
07 Body nut 7 51451949950 $0.34 ENDED
07 C-clip nut 7 07146988451 $0.36
08 Fillister head self-tapping screw ST4,2X16-Z2 3 07119907948 $0.18
09 Fillister head self-tapping screw ST4,2X13-Z2 4 07119907939 $0.11
10 Clamp 2 16111117201 $0.30
11 Heater duct 1 64221908701 $36.12
12 Heater duct right 1 64221908702 $18.77
15 Body nut 1 51451949950 $0.34 ENDED
15 C-clip nut 1 07146988451 $0.36
16 Clamp 2 51431852731 $0.52 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
