7' E32 730i Actuator/connection rod behr

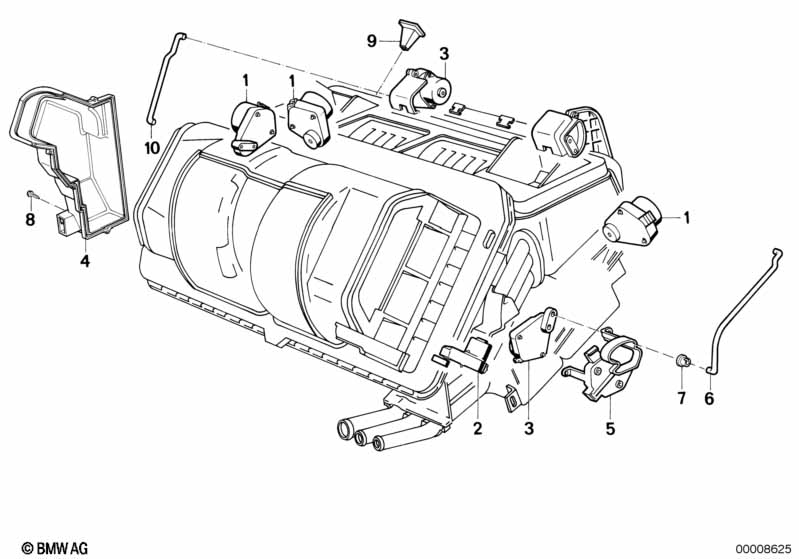

Actuator/connection rod behr
No. Description Supp. Qty  From   Up To  Part Number Price Notes
ONLY APPLIES TO LEG ROOM FLAP
01 Actuator 2 64118364761 $196.07 ENDED
Only applies to ventilation flap
01 Actuator 1 64118364761 $196.07 ENDED
ONLY APPLIES TO FRESH AIR FLAP
02 Actuator 1 64118364760 $196.07
ONLY APPLIES TO DEFROSTER FLAP
ONLY APPLIES TO TEMP.REGULATOR FLAP
03 Actuator 2 64118364918 $155.87
04 Cover 1 12/1987 64111378755 $59.95 ENDED
04 Cover 1 12/1987 64111378755 $59.95 ENDED
04 Cover 1 12/1987 64111382916 $21.32 ENDED
For vehicles with
Microfiltre

=Yes
04 Evaporator cover 1 64111390834 $25.25
05 Protection cap 1 64111378705 $5.60
06 Connection rod 1 64111388535 $8.53 ENDED
07 Clamp 4 64111372638 $1.72 ENDED
08 Screw X 64118390085 $0.33 ENDED
08 Fillister head screw X 51438229759
09 Covering right 1 64111379574 $39.84
10 Connection rod 1 64111374381 $5.58
Notes
  • ENDED = the part has been discontinued (no longer available).
