7' E32 730i Additional fuel pump

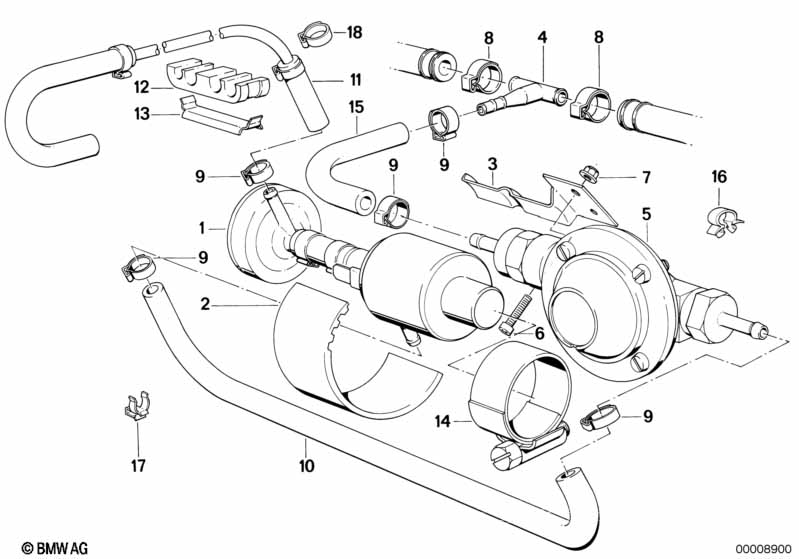

Additional fuel pump
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Fuel pump 1 10/1988 64121389026 $326.99 ENDED
only in conjunction with
-- Adapter lead 1 10/1988 61121391519 ENDED
02 Base 1 10/1988 64121378218
03 Braket fuel pump 1 10/1988 64121378216 ENDED
04 T-Connector 1 10/1988 64121378217 ENDED
05 Fuel pump 1 10/1988 64121389026 $326.99 ENDED
only in conjunction with
-- Adapter lead 1 10/1988 61121391519 ENDED
06 Fillister-head screw M5X30 1 10/1988 07119919619 $0.50 ENDED
06 Fillister-head screw M5X25 1 10/1988 07119919959 $0.60
07 Collar nut 1 10/1988 51451819789 ENDED
08 Hose clamp 13,1-15,3 2 10/1988 16121176918 $1.76
09 Hose clamp 66/100 4 10/1988 64121378285 $1.03
10 Hose 1 10/1988 64121378286
10 Hose 1000MM 1 10/1988 64121388228 ENDED
10 Fuel hose 126MM 1 10/1988 64128379561 $11.94
11 Fuel pipe 1 10/1988 64121388577 ENDED
12 Clamp X 10/1988 64121378644 $0.68
13 Holder X 10/1988 34321379024 $0.64
14 Hose clamp 1 10/1988 64121382617
15 Fuel pipe 1 10/1988 64121379880 ENDED
16 Tubing support D=10,8MM 1 10/1988 64111364073 $0.57
17 Clamp 1 10/1988 64121382084 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
