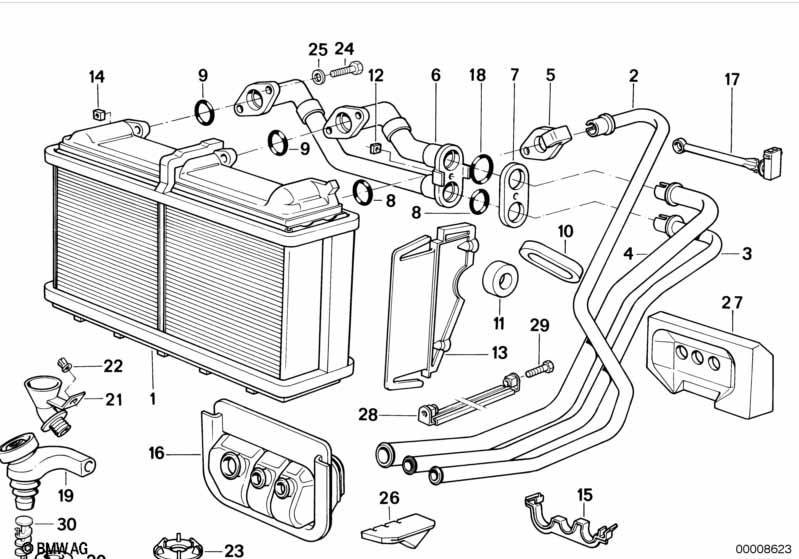

7' E32 730i Heater radiator Behr

Heater radiator Behr
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Heater radiator 1 64118372523 $200.33
02 Pipe 1 64111378203 $35.77
03 Pipe 1 64111378204 $28.20
04 Pipe 1 64111374368 $28.20
05 Flange 1 64111374236 $4.02
06 Pipe 1 64118372524 $73.03
07 Flange 1 64111378756 $4.02
08 Gasket ring D=13,98MM 2 64111374238 $1.82
09 Gasket ring D=20,29MM 2 04/1994 64118390266 $0.75 ENDED
09 Gasket ring D=20,29MM 2 64118379131 $0.51
10 Gasket ring 1 64111374369 $2.24
11 Gasket ring 1 64111374370 $1.07
13 Cover 1 64111374371 $7.56
15 Holder 1 64111374397 $4.12 ENDED
16 Rubber grommet 1 64118390864 $19.78
17 Temperature sensor, heater 1 64111374242 $33.45
18 Gasket ring D=17.12MM 1 12/1997 64111355780 $1.41 ENDED
18 Gasket ring D=17.12MM 1 64118377824 $1.82
18 Gasket ring D=17.12MM 1 64118377824 $1.82
19 Water drain, left 1 64111374133 $13.89
19 Water drain, right 1 64111374134 $13.89
19 Water drain, left 1 64118391145 $10.86
19 Water drain, right 1 64118391146 $10.86
20 Rubber grommet 2 64111378311 $1.23
20 Fastening elements WEIß 2 64118391251
21 Funnel 2 64111378307 $1.37
22 Plastic nut M6 2 16131176747 $0.53
23 Lock Ring 2 64111379296 $0.88
26 Gasket 1 64111382361 $34.45
27 Grommet for water pipe 1 64118391164 $12.22
Notes
  • ENDED = the part has been discontinued (no longer available).
