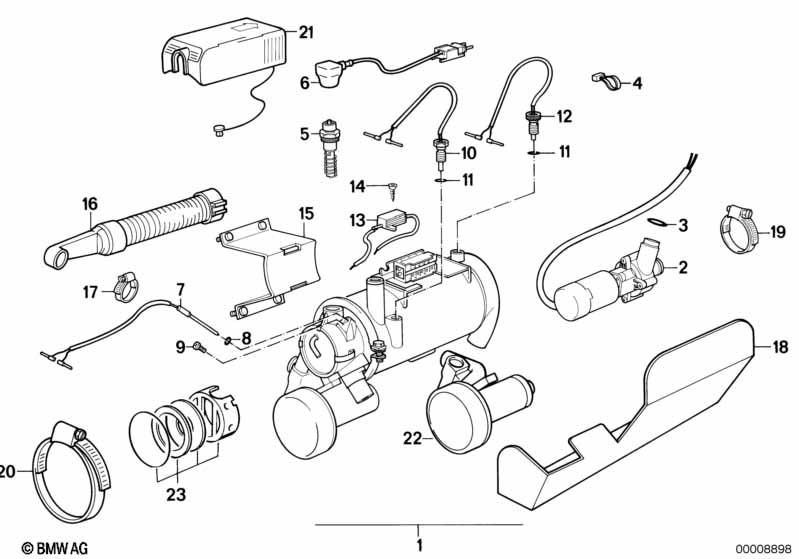

7' E32 730i Single components f Independent heater

Single components f Independent heater
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Heater 1 03/1992 64121388235 ENDED
02 Water pump 1 03/1992 64121392116
03 Gasket ring 1 03/1992 64121390065 ENDED
04 Cable tie L=292MM/B=4,8MM 1 03/1992 61131377134 $0.77
05 Glow plug 1 03/1992 64211378883 $47.99
06 Cable 1 03/1992 64211378884
07 Temperature sensor, heater 1 03/1992 64211378885
08 Gasket ring 5X1 1 03/1992 64121378887
09 Fillister head screw M4X8 1 03/1992 07119906407 $1.64
10 Temperature sensor, heater 1 03/1992 64211378888
11 Gasket ring 7X2 1 03/1992 64121378889 ENDED
12 Temperature switch 1 10/1989 64211378890 ENDED
12 Temperature switch 1 10/1989 03/1992 64128351820 ENDED
13 Resistor 1 03/1992 64121378892
15 Holder 1 03/1992 64121378215 ENDED
16 Muffler 1 03/1992 64211378893
17 Hose clamp L18-24 1 03/1992 07129952109 $1.07
18 Heat resistant plate 1 03/1992 64121378233 ENDED
19 Hose clamp L42-48 2 03/1992 07129952119 $1.15
20 Hose clamp L89-96 2 03/1992 07129952135 $2.18
21 Cap 1 03/1992 64211378895
22 Blower unit 1 03/1992 64121378878
23 Repair kit filter 1 03/1992 64121391281 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
