7' E32 750i BMW wiring schemes

BMW wiring schemes

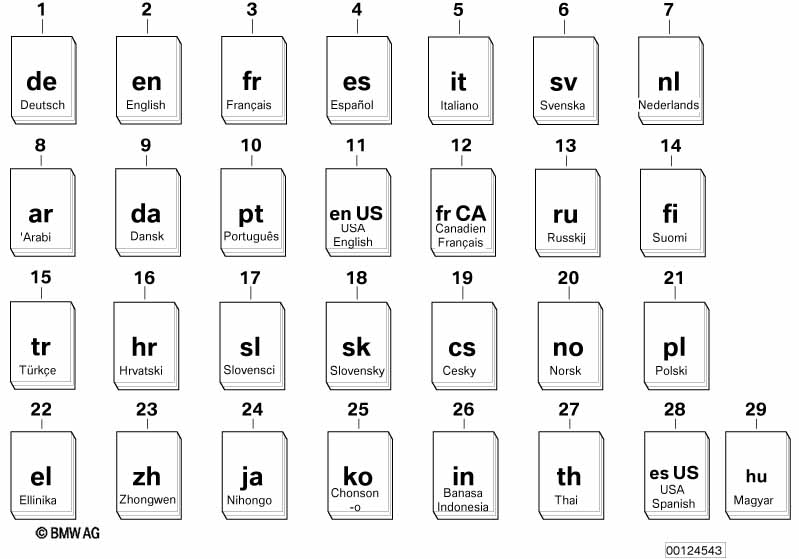

No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Wiring scheme German E32 DE 1 10/1986 09/1987 01509780530 $42.48 ENDED
01 Wiring scheme German E32, MJ 92 1 04/1992 08/1992 01509786690 $70.03 ENDED
01 Wiring scheme German E32, MJ 93 1 03/1993 05/1994 01509787480 $89.00 ENDED
01 Wiring scheme German E32, MJ 94 1 05/1994 01/1995 01509788490 $149.54 ENDED
02 Wiring scheme English E32 RHD, MJ 93 1 08/1992 04/1993 01519787017 ENDED
02 Wiring scheme English E32 93 EN-RHD 1 10/1994 01/1995 01519788817 ENDED
04 Wiring scheme Spanish E32, MJ 94 1 05/1994 01/1995 01539788493 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
