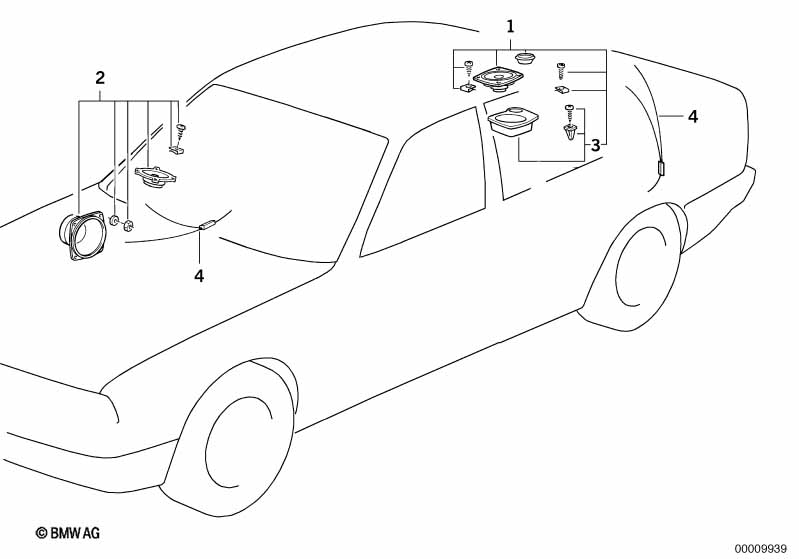

7' E32 750i Loudspeaker front/rear
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
||||||||
| 01 | Woofer | MB QUART | 1 | 82899402269 | ENDED | ||||
| 01 | Tweeter | MB QUART | 1 | 82899402270 | ENDED | ||||
| 02 | Retrofit kit, loudspeaker, front | PERFORMANCE | 1 | 82119410549 | ENDED, EBA 9786244 | ||||
| 02 | Tweeter | MB QUART | 1 | 82899402270 | ENDED | ||||
| 02 | MID-range loudspeaker | MB QUART | 1 | 82899402272 | ENDED | ||||
| For vehicles with National version Germany |
L801A=No |
||||||||
| 03 | Set mounting parts | PERFORMANCE | 1 | 82119410550 | ENDED, EBA 9786246 | ||||
| 04 | Set frequency-crossover netw. | PERFORMANCE | 1 | 82119410660 | ENDED | ||||
| 04 | Frequency-crossover netw. | MB QUART | 1 | 82899402273 | ENDED | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- EBA = Einbauanleitung (Installation instructions)
