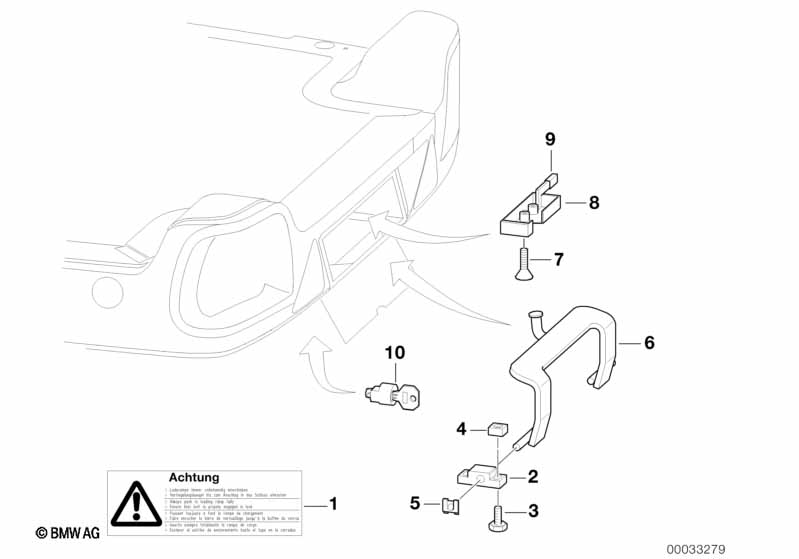

7' E32 750i Trailer, indiv. parts, load ramp catch
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Label | 1 | 86190002054 | $2.75 | ENDED | ||||
| 02 | Supporting bracket | 2 | 86190002055 | $18.75 | ENDED, +core | ||||
| 03 | Hex bolt | M6X16-8.8-ZNS | 4 | 07119913015 | $0.60 | ||||
| 04 | Square nut | M6 | 4 | 86190002058 | $0.25 | ENDED | |||
| 05 | Clamp | 2 | 86190002059 | $0.75 | ENDED | ||||
| 06 | Locking bow | 1 | 86190002061 | $55.50 | ENDED, +core | ||||
| 07 | Countersunk screw | M8X35 | 2 | 86190000762 | $0.75 | ENDED | |||
| 08 | Rotary latch lock | 1 | 86190002060 | $61.50 | ENDED, +core | ||||
| 09 | PVC cap | ROT | 1 | 86190002062 | $2.25 | ENDED | |||
| 10 | Lock incl. key | 1 | 86190002056 | $17.00 | ENDED |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
