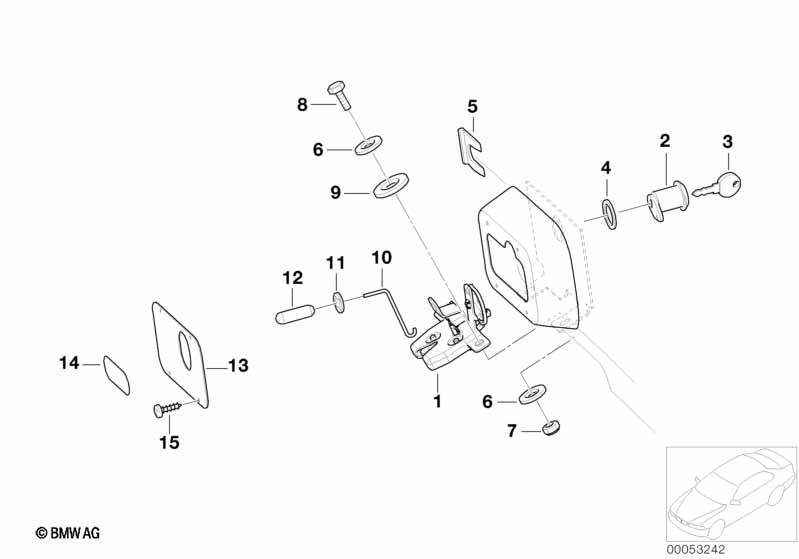

7' E32 750i Hood parts, doors/locking system
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid lock with micro switch | 3 | 51248169532 | $32.98 | |||||
| 02 | Lock with code, left | 3 | 51211901537 | $79.12 | |||||
| 03 | Standard key (code) | SERVICE | 2 | 32321109800 | $37.40 | ||||
| 03 | Standard key (blank) | SERVICE | 2 | 32321109801 | $24.93 | ||||
| 04 | Base | 3 | 51211889499 | $1.09 | |||||
| 05 | Clamp | 3 | 51211838035 | $1.11 | |||||
| 06 | Washer | 18X5,5X1,5MM | 4 | 86290008790 | ENDED | ||||
| 07 | Self-locking hex nut | M5 | 2 | 04/1994 | 07129964603 | $0.16 | ENDED | ||
| 07 | Hex nut | M5-8-ZNNIV SI | 2 | 07129904475 | $0.25 | ||||
| 08 | Hex bolt | M5X16 | 2 | 04/1994 | 07119913113 | $2.19 | ENDED | ||
| 08 | Hex bolt | M5X16-U1-8.8 | 2 | 07119905215 | $0.33 | ||||
| 09 | Washer | A10,5 | 2 | 07119931096 | $0.22 | ||||
| 10 | Connection rod | 1 | 86290008848 | ENDED | |||||
| 11 | Spring nut | 2 | 86290008849 | ENDED | |||||
| 12 | Cap | 1 | 86290008847 | ENDED | |||||
| 13 | Rear door cover | 135X76MM | 1 | 86290008769 | ENDED | ||||
| 13 | Side door cover | 130X64,5MM | 2 | 86290008846 | ENDED | ||||
| 14 | Label | 1 | 86290008770 | ENDED | |||||
| 15 | Fillister head self-tapping screw | ST3,5X8 | X | 07119900281 | $0.36 |
Notes
- ENDED = the part has been discontinued (no longer available).
