7' E32 750i Valve Timing Gear - Cam Shaft

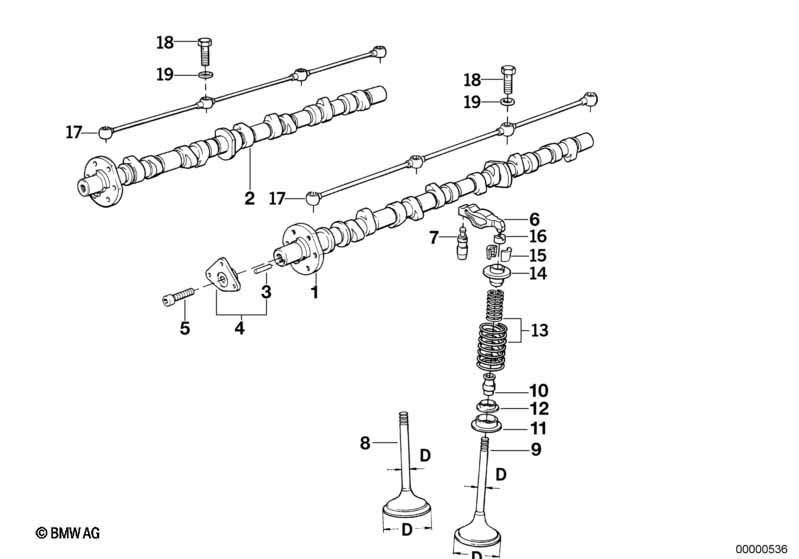

Valve Timing Gear - Cam Shaft
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Camshaft leftt ZYL.7-12 1 11311715832 $1629.16 ENDED
02 Camshaft right ZYL.1-6 1 11311715829 $1629.16
03 Dowel pin 3X8 2 07119942161 $0.11
04 Adapter 2 11311718733 $46.40
05 Fillister-head screw M8X25 2 07119919979 $0.30
06 Rocker arm X 11331709063 $55.08
07 Alignment element X 11331712010 $32.50
08 Intake valve 42,0/6,94MM X 11341727358 $32.42
08 Intake valve w.oversize VA.system +0,1mm 42,0/7,10MM X 11341727359 $44.76
08 Intake valve w.oversize VA.system +0,2mm 42,0/7,20MM X 11341727360 $86.49
09 Exhaust valve 35,0/6,94MM X 04/1990 11341713731 $129.76
09 Exh. valve w.oversize VA.system +0,1mm 35,0/7,10MM X 04/1990 11341715611 $92.07
09 Exhaust valve w.oversize VA.system+0,2mm 35,0/7,20MM X 04/1990 11341715612 $92.07 ENDED
09 Exhaust valve 36,0/6,96MM X 04/1990 11341727352 $77.29 ENDED
09 Exhaust valve 36,0/6,96MM X 04/1990 11341717878 $44.40
09 Exh. valve w.oversize VA.system +0,1mm 36,0/7,10MM X 04/1990 11341727353 $177.20
09 Exhaust valve w.oversize VA.system+0,2mm 36,0/7,20MM X 04/1990 11341727354 $177.20
10 Repair kit valve seal ring 2 11349059172 $46.94
11 Spring pocket X 11341718468 $3.77
12 Spring pocket X 11341720405 $3.77
13 Valve spring X 11341709604 $7.88
13 Valve spring inner X 11341709605 $7.88
14 Upper spring plate X 11341709607 $3.77
15 Valve collet X 11341307136 $1.08
16 Thrust adapter X 11331727202 $4.70
17 Oil pipe 2 11421718515 $69.99
18 Hollow bolt 8 11421738621 $6.01
19 Gasket ring A8X11,5-AL X 07119963041 $0.57
Notes
  • ENDED = the part has been discontinued (no longer available).
