7' E32 750i Engine block pre heating

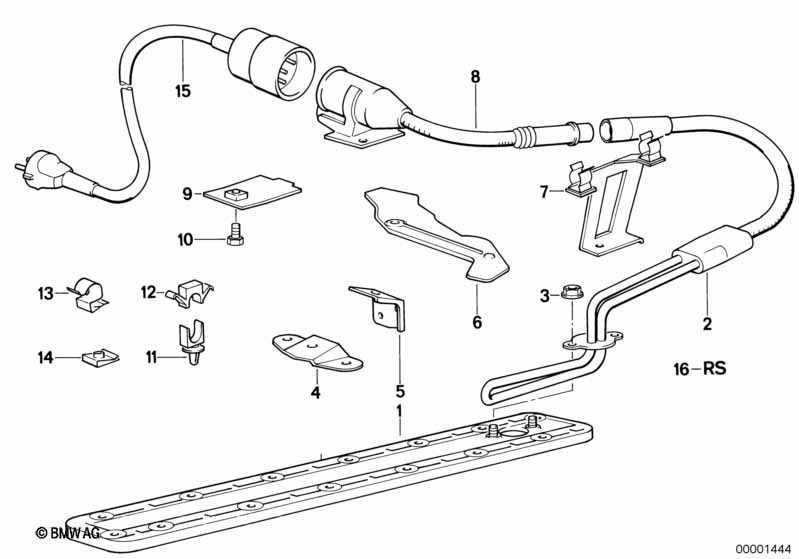

Engine block pre heating
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cover 1 11141715837
02 Engine block pre heat unit 220 V/750W 1 12811718706 ENDED
only in conjunction with
-- Cable tie L=292MM/B=4,8MM 1 61131377134 $0.77
-- Gasket Asbestos Free 1 11141736959 $25.13 SI 170190201
03 Hex nut with plate M6 2 04/1994 11611708413 $0.33 ENDED
03 Hex nut with plate M6 ZNT 2 07149156628 $0.25
04 Holder 1 12811720285 ENDED
05 Holder 1 12811720286 ENDED
06 Holder 1 12811720283 ENDED
08 Tubing 220 V 1 12511719732 ENDED
09 Holder 1 12521719704 $5.02 ENDED
10 Hex bolt with washer M6X16-Z1 2 04/1994 07119915039 $0.27 ENDED
10 Hex bolt with washer M6X16-U1-ZNS3 2 07119903844 $0.38 ENDED
10 Hex bolt with washer M6X16-U1-8.8 2 07119904524 $0.25
11 Cable holder 1 12511287301 $0.68
12 Clamp 1 12511287300 $0.83
13 Holder 1 12521719734 $0.63
14 C-clip nut M6-ZNS3 1 51127070202 $1.00
15 Wiring set 220 V / ECE-DIN 1 12822241963 ENDED
16 Kit engine block pre heat unit 220 V 1 12801729600 ENDED, EBA 9782123
Notes
  • ENDED = the part has been discontinued (no longer available).
  • SI = Service Information
  • EBA = Einbauanleitung (Installation instructions)
