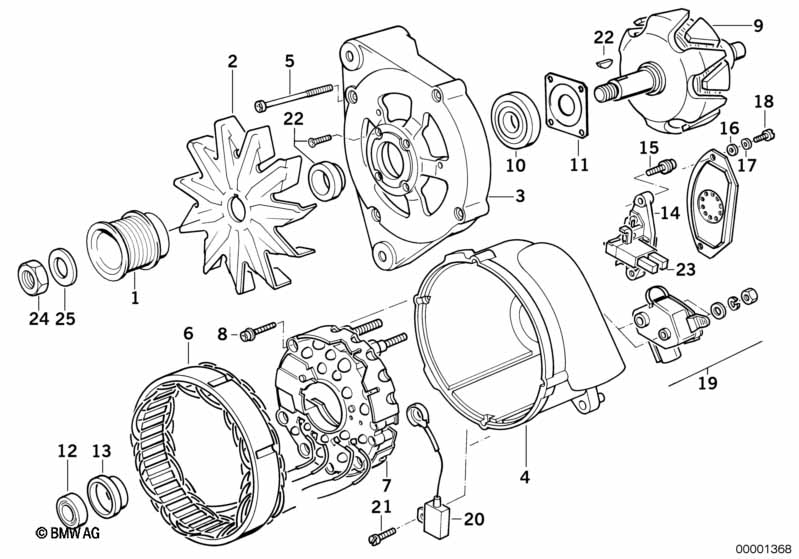

7' E32 750i Alternator parts 140a
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO ALTERNATOR BOSCH Typ Nr. 0 120 468 033 BMW Nr. 12 31 1 733 060 / 772 |
||||||||
| 01 | Pulley alternator | SERVICE | 1 | 12311720368 | $39.65 | ||||
| 02 | Fan wheel | BOSCH/D=154MM | 1 | 12311730496 | $37.51 | ||||
| 03 | Housing assy front | 1 | 12311747245 | $77.56 | ENDED | ||||
| 04 | Housing assy rear | 1 | 12311747249 | $66.96 | |||||
| 05 | Fillister head screw | 4 | 12311747481 | $2.18 | |||||
| 06 | Stator assy | 1 | 12311747244 | $224.32 | ENDED | ||||
| 07 | Diode assy | 1 | 12311747250 | $250.67 | ENDED | ||||
| 08 | Screw | 5 | 12311727753 | $2.62 | |||||
| 09 | Rotor | 1 | 12311747248 | $314.71 | |||||
| 10 | Grooved ball bearing | 52X17X17 | 1 | 12311747246 | $51.53 | ENDED | |||
| 11 | Supporting plate | 1 | 12311747247 | $3.35 | |||||
| 12 | Grooved ball bearing | 32X12X10 | 1 | 12311739203 | $21.20 | ||||
| 13 | Ring | 1 | 12311735305 | $2.73 | |||||
| 14 | Voltage regulator | BOSCH | 1 | 12311735742 | $124.68 | ||||
| 15 | Fillister-head screw | 2 | 12311747251 | $0.58 | |||||
| 16 | Washer | A4,3 | 1 | 07119931027 | $0.36 | ENDED | |||
| 16 | Washer | 9X4,3X0,8-200HV | 1 | 07119904205 | $0.07 | ||||
| 17 | Wave washer | B4 | 2 | 07119932033 | $0.09 | ||||
| 18 | Screw | 2 | 52208181908 | $0.50 | |||||
| 19 | Set mounting parts | B+/D* | 1 | 12311747252 | $9.57 | ||||
| 20 | Condenser | 1 | 12311722989 | $29.30 | |||||
| 21 | Fillister-head screw | AM5X10 | 1 | 07119919412 | ENDED | ||||
| 22 | Repair kit rotor | 1 | 12311727762 | $18.57 | |||||
| 23 | Carbon brush set | 1 | 12311727756 | $18.07 | |||||
| 24 | Hex nut | M16X1,5-04-ZNS | 1 | 07119901307 | $1.80 | ||||
| 25 | Wave washer | B16 | 1 | 07119932162 | $0.24 | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
