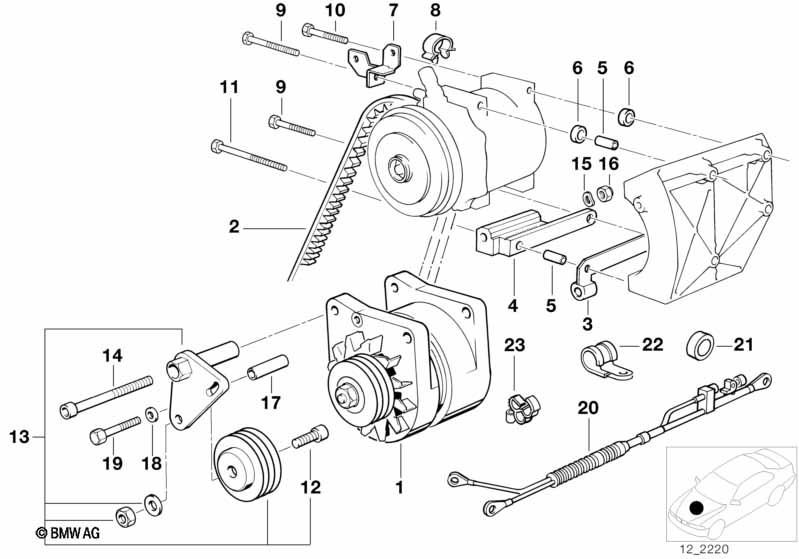

7' E32 750i Additional alternator/mounting parts

Additional alternator/mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Exch. generator 32A 1 12311731103 $645.64
02 Ribbed v-belt 3K X 590 1 11281736744 $22.68
03 Holder 1 12311747490 $13.73
04 Suspension 1 12311747489 $50.22
05 Dowel 2 64551729796 $2.60 ENDED
06 Spacer 2 12311729465 $1.76
07 Holder 1 12521733055 $2.52
08 Cable holder D=14,3 1 12521733330 $0.92
09 Hex bolt M8X95 2 07119912604 $1.42
10 Hex bolt with washer M8X90-Z3 1 07119913103 $0.76
11 Hex bolt M8X130 1 07119912585 $2.09
12 Fillister-head screw M8X16 1 10/1992 07119919720 $2.33 ENDED
12 Fillister-head screw M8X16 1 07119900187 $1.77 ENDED
12 ISA screw M8X16 1 07129905214 $0.53
13 Adjusting pulley 1 11281731102 $172.62
14 Fillister-head screw M8X150 1 07119902671 $3.51
15 Wave washer B8 1 04/1994 07119932095 $0.09 ENDED
15 Wave washer 1 07119904115 $0.09
16 Self-locking hex nut M8 1 07129922716 $0.36
17 Sleeve M6X33,5 1 11281731095 $9.04
18 Washer 6,4 1 05/1990 07119931044 $0.58 ENDED
18 Washer A6,4-ZNS 1 04/1994 07119931018 $0.40 ENDED
18 Washer A6,4-ZNNIV SI 1 07119904202
19 Hex bolt M6X50 1 04/1994 07119912337 $0.91 ENDED
19 Hex bolt M6X50 8.8 ZNS3 1 07119902993 $0.59
20 Wiring-additional alternator 1 08/1990 12511732156 $174.53
20 Wiring-additional alternator 1 08/1990 12511732776 $69.84 ENDED
21 Spacer bush 4 13901731074 $1.38
22 Clamp D=10/6,4 4 12141305028 $1.58
23 Holder 1 12521724609 $1.23
Notes
  • ENDED = the part has been discontinued (no longer available).
