7' E32 750i Additional alternator/single parts

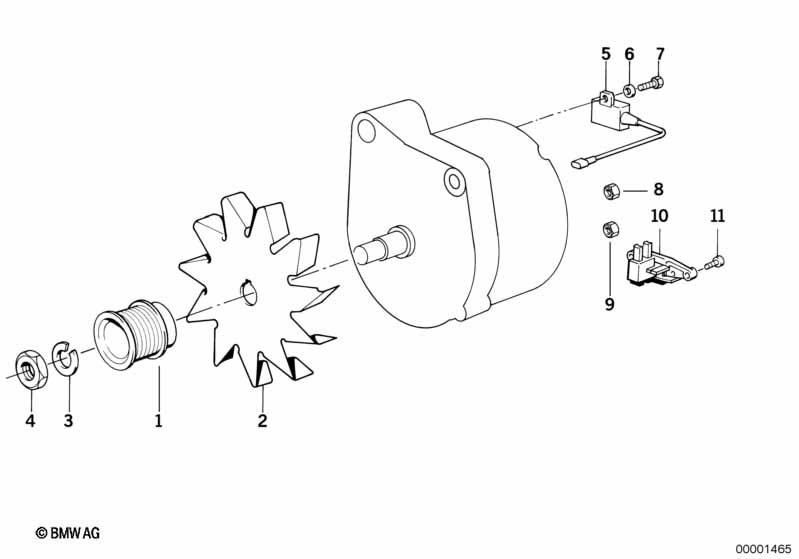

Additional alternator/single parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Typ-Nr. 0 120 339 547
BMW Nr. 12 31 1 731 103
01 Pulley alternator 1 12311733337 $36.27 ENDED
02 Fan wheel 1 12311733338 $12.05 ENDED
03 Spring washer B16 1 07119933155 $0.88
04 Hex nut M16X1,5-04-ZNS 1 07119901307 $1.80
05 Suppression capacitor 1 12311733402 $20.87 ENDED
06 Wave washer B6-ZNS3 1 07119904496 $1.78 ENDED
06 Wave washer B6 1 07119932099 $0.38
06 Wave washer B6 1 07119932072 $0.09 ENDED
only applies to
-- Exch. generator 32A X 12311731103 $645.64
07 Fillister-head screw M6X8 1 07119906436 $0.20
08 Hex nut M6 1 08/1996 23112322368 $0.38 ENDED
08 Hex nut M6-8-ZNS 1 08/1996 07119922832 $0.37 ENDED
08 Hex nut M6-8-ZNNIV SI 1 07119905543 $0.38
09 Hex nut M5 1 07119921038 $0.38
10 Voltage regulator BOSCH 1 12311735742 $124.68
11 Fillister-head screw 2 12311747251 $0.58
Notes
  • ENDED = the part has been discontinued (no longer available).
