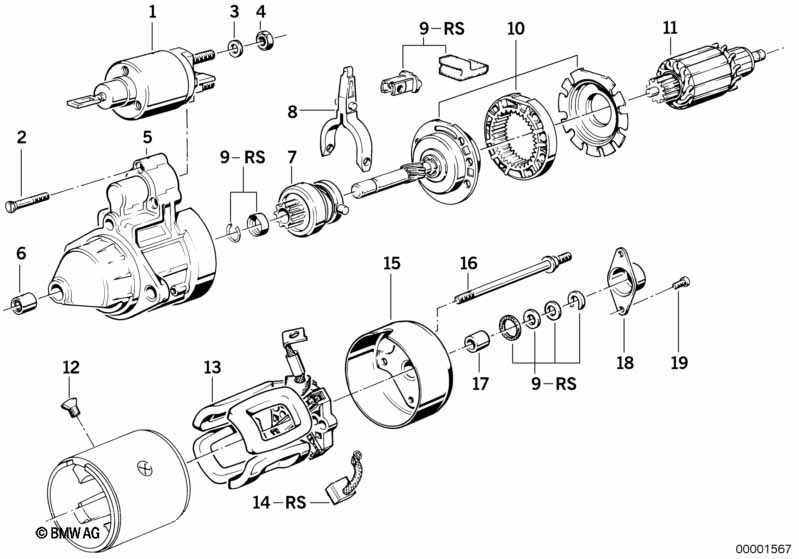

7' E32 750i Starter parts 2,2kw
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | Typ Nr. 0 001 218 136 ONLY APPLIES TO STARTER BOSCH |
||||||||
| 01 | Solenoid switch | 1 | 12411720442 | $140.48 | |||||
| 02 | Countersunk head screw | 3 | 12411720438 | $1.12 | |||||
| 03 | Spring washer | 1 | 12411289493 | $0.40 | ENDED | ||||
| 04 | Hex nut | BM8 | 1 | 07119921077 | $0.13 | ENDED | |||
| 04 | Hex nut | M8-05-ZNNIV SI | 1 | 07119904948 | $1.00 | ||||
| 05 | Housing assy front | 1 | 12411720445 | $130.57 | ENDED | ||||
| 06 | Needle sleeve | 1 | 12411735888 | $8.97 | |||||
| 07 | Free wheel pinion | 1 | 12411289480 | $98.68 | |||||
| 08 | Shift lever | 1 | 12411289482 | $1.98 | ENDED | ||||
| 09 | Repair kit starter motor | 1 | 12411289499 | $19.96 | |||||
| 10 | Planet wheel set | 1 | 12411736763 | $154.01 | |||||
| 11 | Armature | 1 | 12411289488 | ENDED | |||||
| 12 | Countersunk head screw | 4 | 12411720439 | $0.78 | ENDED | ||||
| 13 | Exciter winding | 1 | 12411720443 | $427.43 | ENDED | ||||
| 14 | Carbon brush set | 1 | 12411289498 | $39.34 | |||||
| 15 | Collector guiding | 1 | 12411720446 | $47.15 | ENDED | ||||
| 16 | Screw | 2 | 12411289492 | $3.91 | ENDED | ||||
| 17 | Bushing | 1 | 12411720441 | $6.52 | |||||
| 18 | Covering cap | 1 | 12411289491 | $1.32 | ENDED | ||||
| 19 | Fillister-head screw | 2 | 12411722775 | $0.30 | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
