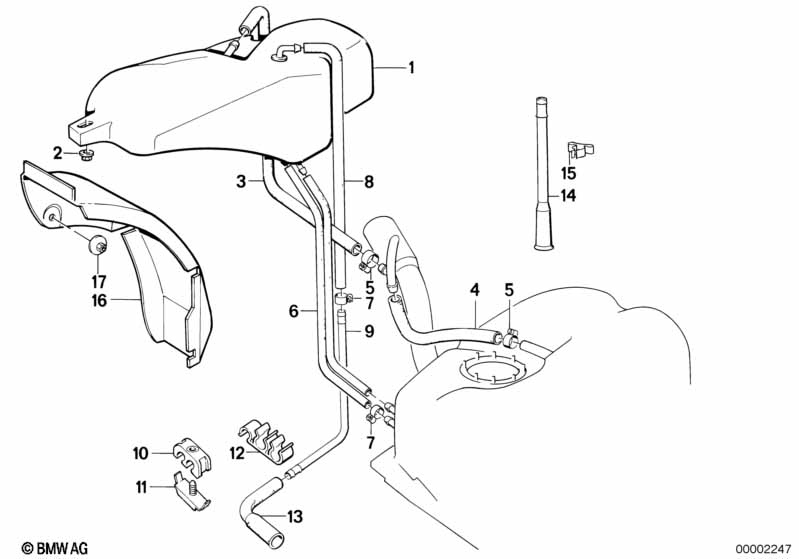

7' E32 750i Expansion tank/tubing

Expansion tank/tubing
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
without catalytic converter

S199A=Yes
01 Expansion tank 1 16131179025 $71.73
02 Hex nut M6-Z2 1 04/1994 51451868108 $0.50 ENDED
02 Hex nut with plate M6 1 07147134319 $1.05
02 Hex nut with plate M6 1 16131178905 $0.52 ENDED
02 Combination nut 1 07147305178
03 Hose 10X16MM X 16121177108 $16.37
04 Hose 1 16111177874 $26.57
05 Hose clamp L12-15 X 07129952104 $1.18
06 Fuel hose 6X11MM X 13311272750 $11.62
07 Hose clamp L=9-12 X 07129952102 $1.18
08 Hose 1 16131179180 $9.02
09 Vent pipe 1 16121179520
10 Clamping 2 16121107928 $4.00
11 Holder 2 16121155060 $1.08
12 Cable clip 1 12/1989 16131179124 $1.22
14 Pipe 435 1 10/1987 16131179986 $7.93
15 Clamp 1 16131179256 $1.15
Notes
  • ENDED = the part has been discontinued (no longer available).
