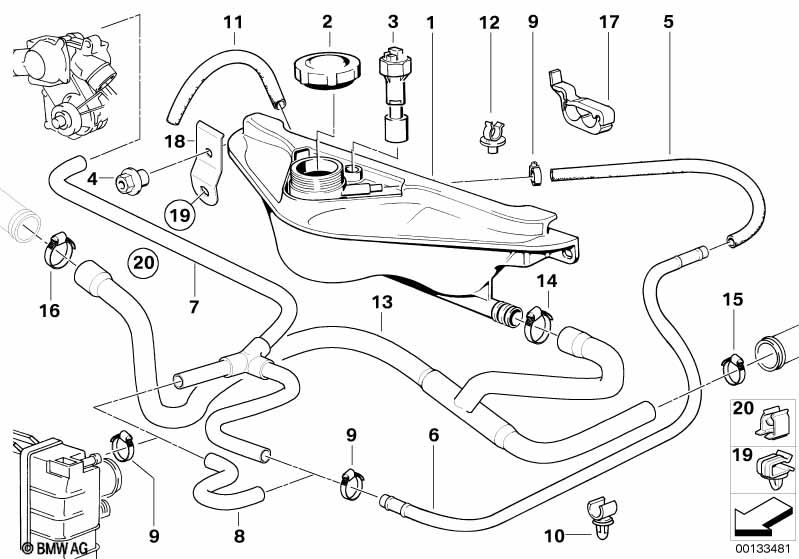

7' E32 750i Expansion tank

Expansion tank
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Expansion tank 1 17111719110 $79.43
02 Radiator cap 2,0BAR 1 08/1994 17111742231 $17.82 ENDED, +core
02 Radiator cap 2,0BAR 1 17117639022
03 Levelling switch radiator L=109MM X 61311378320 $32.46
04 Push-button 2 17111709419 $0.33
05 Vent hose 8X13MM X 17121712736 $17.72
06 Vent pipe 1 17111712356 $10.62
07 Vent hose 1 09/1989 17111702800 $62.05
08 Vent hose 1 09/1989 17111712329 $10.72
09 Hose clamp L12-15 X 07129952104 $1.18
10 Clip 4 17111712004 $0.98
11 Hose 7X10MM X 17111150232 $3.89 +core
12 Hose clamp D=9MM 1 17111712868 $1.18
13 Return hose 1 64211379942 $90.00
14 Hose clamp L28-33 1 07129952113 $0.96
15 Hose clamp L16-30 1 64218367179 $1.07
16 Hose clamp L32-38 1 07129952115 $1.27
17 Hose clamp 2 11531718959 $4.86
18 Bracket 1 17111723713 $5.83
19 Cable holder 1 12521284441 $0.88
20 Bracket breather pipe 1 16131177583 $1.08
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
