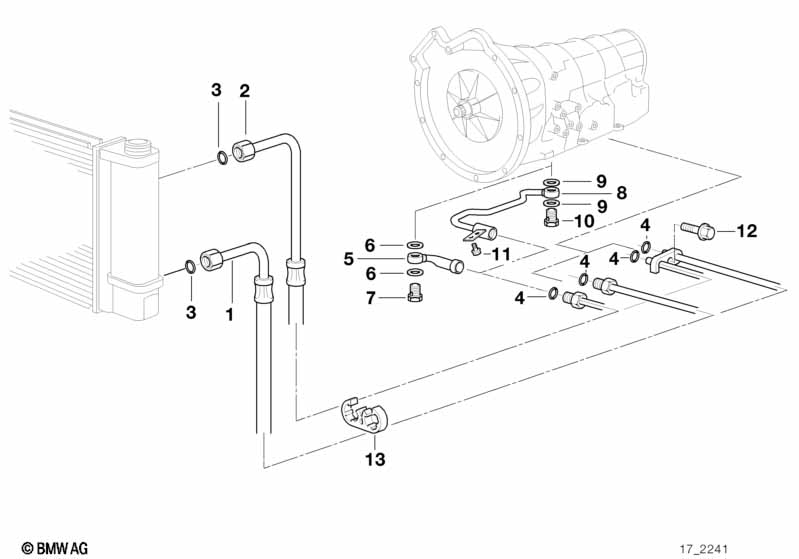

7' E32 750i Transmission oil cooling

Transmission oil cooling
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil cooling pipe-screw type connection 4HP-24 (VL) 1 17221712418 $117.20
02 Oil cooling pipe-screw type connection 4HP-24 (RL) 1 17221712419 $103.89
03 O-ring 9,25X1,78/FPM 2 17211742635 $0.80
04 O-ring 10,82X1,78/FPM 2 17211742636 $0.80
13 Clip 2XD=8,0 X 16121179398 $1.08
13 Fuel pipe bracket X 16126756924 $1.08
13 Bracket oil pipe 2 17201712210 $1.02
13 Fixing clamp 1 17221712242 $1.97
13 Fixing clamp A=25,5MM 1 17221712573 $1.97
13 Bracket oil pipe 1 17221719359 $2.20 ENDED
13 Spacer sleeve D6 1 17227798686 $3.32
Notes
  • ENDED = the part has been discontinued (no longer available).
