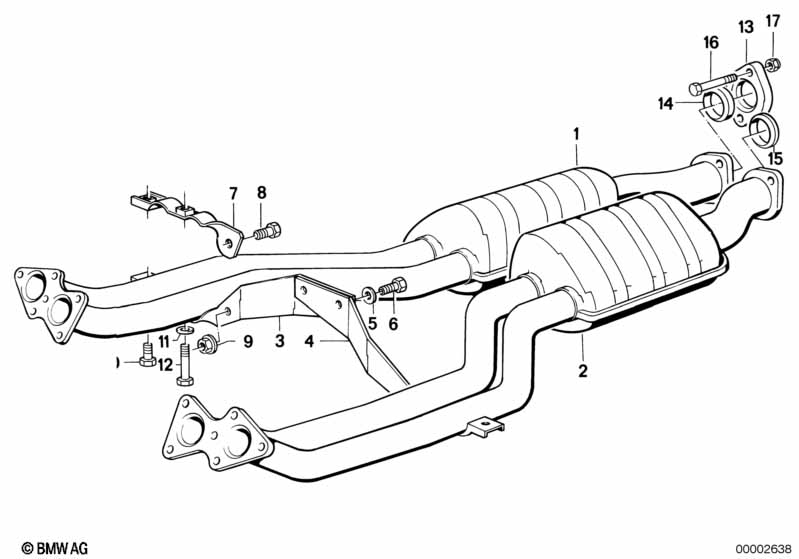

7' E32 750i Exhaust pipe front silencer

Exhaust pipe front silencer
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i CATALYZER PREPARATION
CONVENTIONAL EXHAUST TECHNIQUE
01 Exhaust pipe-muffler ZYL.1-6 1 18101712375 $401.76
02 Exhaust pipe-muffler ZYL.7-12 1 18101712377 $401.76 ENDED
03 Holder ZYL.1-6 1 18211709296
04 Holder ZYL.7-12 1 18211709297 ENDED
05 Washer A8,4 2 33311108205 $0.16
06 Hex bolt M8X25-8.8-ZNS 2 07119901125 $0.84
06 Hex bolt M8X22-8.8-ZNS3 2 07119904040
07 Clamp 2 18211709298
08 Hex bolt M8X16 1 07119913612 $0.62
09 Collar nut M8 8 07119927022 $0.20
09 Collar nut M8-8-SC-ZNNIV 8 07119906089 $0.32
10 Hex bolt M8X20-ZNS 2 07119901120 $0.60 ENDED
10 Hex bolt M8X20-ZNNIV SI 2 07119903039
11 Washer 8,4X16X1,6-ZNNV 2 07119907030
12 Hex bolt M8X43-8.8-ZNS3 2 07119903076 $0.71
13 Flange 1 18111712393 $18.86
14 Gasket ring asbesto-free 72MM 1 18111723538 $11.80 ENDED
14 Gasket ring 72MM 1 18111723530
15 Gasket ring 60MM 1 18111709239 $11.80
Required for repair
-- Hex nut wiht flange M8 2 18307620549
-- Hex bolt M8X55-8.8 2 07119902957 $5.27
16 Hex bolt M8X55-8.8 4 07119902957 $5.27
17 Hex nut wiht flange M8 4 04/1994 11621711954 $0.60 ENDED
17 Hex nut wiht flange M8 4 18307620549
Notes
  • ENDED = the part has been discontinued (no longer available).
