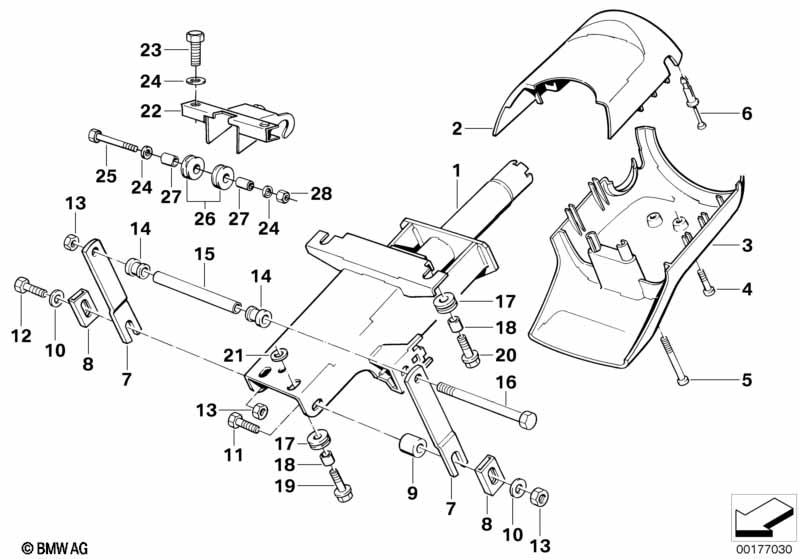

7' E32 750i Steering column-bearing sup./single part
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | only applies to airbag | ||||||||
| 01 | Steering column tube | 1 | 02/1990 | 32311156476 | $56.36 | ENDED | |||
| 02 | Trim panel upper part | 1 | 09/1987 | 02/1990 | 32311158287 | $76.30 | |||
| 03 | Lower trim panel | 1 | 02/1990 | 32311156474 | $73.85 | ||||
| 04 | Fillister head screw | M5X12 | 2 | 02/1990 | 07119907587 | $1.98 | ENDED | ||
| 04 | Fillister head screw | M5X12-Z3-ZN | 2 | 02/1990 | 07119906816 | $0.18 | |||
| 04 | Self tapping screw | 5X15 | 2 | 02/1990 | 32311158376 | $0.23 | |||
| 05 | Fillister head screw | M5X35-Z3 | 2 | 02/1990 | 07119906833 | $0.24 | |||
| 05 | Self tapping screw | 5X45 | 2 | 02/1990 | 32311158356 | $1.41 | |||
| 06 | Expanding rivet | 2 | 02/1990 | 32311156232 | $1.18 | ||||
| 07 | Lever | 2 | 02/1990 | 32311156829 | $2.10 | ENDED | |||
| 08 | Sleeve | 2 | 02/1990 | 32311154416 | $0.48 | ||||
| 09 | Spacer bush | 1 | 02/1990 | 32311156709 | $1.68 | ENDED | |||
| 10 | Washer | 8,4 | 2 | 02/1990 | 07119936441 | $0.78 | ENDED | ||
| 10 | Washer | 8,4X24X2-ZNS3 | 2 | 02/1990 | 07119904164 | $0.40 | |||
| 11 | Hex bolt | M8X30-ZN | 1 | 02/1990 | 07119913662 | $0.22 | |||
| 11 | Hex bolt | M8X30 | 1 | 02/1990 | 07119913664 | $0.47 | |||
| 12 | Hex bolt | M8X22 | 1 | 02/1990 | 07119913652 | $0.62 | ENDED | ||
| 12 | Hex bolt | M8X22-8.8-ZNS3 | 1 | 02/1990 | 07119904040 | ||||
| 13 | Self-locking hex nut | M8 | 3 | 02/1990 | 07129946400 | $0.35 | ENDED | ||
| 13 | Self-locking hex nut | M8-8-ZNNIV SI | 3 | 02/1990 | 07129905767 | $0.27 | ENDED | ||
| 14 | Bushing | 2 | 02/1990 | 32311153860 | $0.70 | ||||
| 15 | Spacer sleeve | 1 | 02/1990 | 32301154350 | $2.27 | ENDED | |||
| 16 | Hex bolt | M8X110 | 1 | 02/1990 | 07119912578 | $1.18 | ENDED | ||
| 16 | Hex bolt | M8X110-8.8 | 1 | 02/1990 | 07119906728 | ||||
| 17 | Guide bush | 3 | 02/1990 | 32311118049 | $1.75 | ENDED | |||
| 17 | Guide bush | 3 | 02/1990 | 32311093601 | $0.48 | ||||
| 18 | Spacer tube | 3 | 02/1990 | 32311111186 | $0.88 | ||||
| 19 | Fracture bolt | M8X28 9.8 | 1 | 02/1990 | 32311158528 | $1.83 | |||
| 20 | Hex bolt with washer | M8X22-Z3 | 2 | 02/1990 | 07119915064 | $0.35 | ENDED | ||
| 21 | Washer | 1 | 02/1990 | 11614000131 | $1.80 | ||||
| 22 | Suspension | 1 | 02/1990 | 32311157702 | $17.30 | ENDED | |||
| 24 | Washer | A8,4-200 | 4 | 02/1990 | 07119900052 | $0.11 | ENDED | ||
| 24 | Washer | 8,4X16X1,6-ZNNV | 4 | 02/1990 | 07119907030 | ||||
| 25 | Hex bolt | M8X75 | 1 | 02/1990 | 07119912553 | $2.42 | ENDED | ||
| 25 | Hex bolt | M8X75-8.8-ZNS3 | 1 | 02/1990 | 07119906028 | ||||
| 26 | Guide bush | 2 | 02/1990 | 32311118049 | $1.75 | ENDED | |||
| 26 | Guide bush | 2 | 02/1990 | 32311093601 | $0.48 | ||||
| 27 | Spacer tube | 2 | 02/1990 | 32311111186 | $0.88 | ||||
| 28 | Self-locking hex nut | M8 | 2 | 02/1990 | 07129946400 | $0.35 | ENDED | ||
| 28 | Self-locking hex nut | M8-8-ZNNIV SI | 2 | 02/1990 | 07129905767 | $0.27 | ENDED | ||
| 28 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 02/1990 | 07129906196 | $1.60 | |||
Notes
- ENDED = the part has been discontinued (no longer available).
