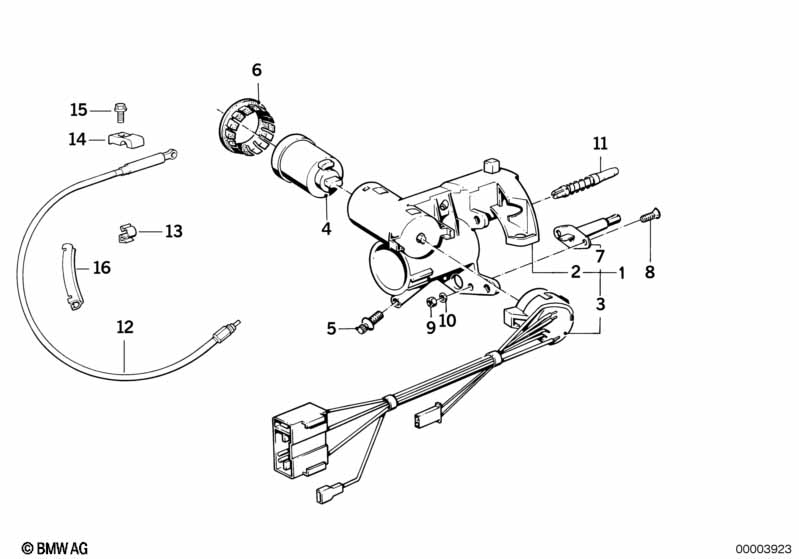

7' E32 750i Steering lock/ignition switch

Steering lock/ignition switch
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i only applies to airbag
02 Steering lock 1 02/1990 32311155240 $178.45 +core
04 Lock (with key code) 1 02/1990 32311092764 $91.53
04 Lock cylinder with key 1 02/1990 32321156757 $53.10
05 Fracture bolt M8X25,8 1 02/1990 32311154176 $8.45
06 Ring 1 02/1990 32311157208 $3.47
For vehicles with
Electronic immobilizer

=No
06 Ring antenna adapter 1 02/1990 61351093295 $7.17
For vehicles with
Infrared remote control with folding key

=Yes
06 Ring antenna adapter EWS-2 1 02/1990 32301094216 $20.94
07 Carbon pin 1 02/1990 32331155242 $9.45
08 Fillister head screw M5X12-ZN 2 02/1990 07119907627 $0.43
09 Hex nut M5 2 02/1990 07119922038 $0.09
10 Wave washer B5 2 02/1990 07119932047 $0.09 ENDED
10 Wave washer B5 2 02/1990 07119932098 $0.38
11 Locking pin 1 02/1990 32341156341 $1.88
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
