7' E32 750i Steer.col.-steer. spin. upper

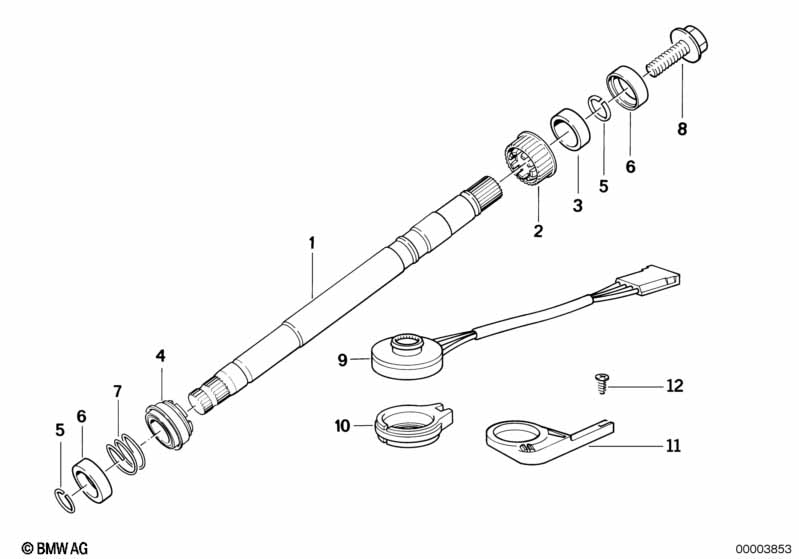

Steer.col.-steer. spin. upper
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i only applies to airbag
01 Steering spindle upper 1 02/1990 32311160060 $91.90
only in conjunction with
-- Hex bolt M14X1,5 1 02/1990 32306795924
02 Steering spindle bearing plastic 1 02/1990 32311158835 $10.93
03 backup ring 1 02/1990 32311158478 $2.43
04 Steering spindle bearing plastic 41,9X25,0X17,0 1 02/1990 32311158837 $17.05
05 Snap ring 2 02/1990 32311157968 $0.25
06 Ring 2 02/1990 32311157966 $1.82
07 Compression spring 1 02/1990 32331158479 $1.38
08 Hex bolt M12 1 02/1990 05/1992 32311159951 $3.42
08 Hex bolt M14X1,5 1 05/1992 04/1994 32311159754 $2.83 ENDED
08 Hex bolt M14X1,5 1 05/1992 32306795924
For vehicles with
Electronic Damper Control (EDC)

=Yes
09 Steering angle sensor 1 05/1990 32311159019 $1006.51
For vehicles with
Electronic Damper Control (EDC)
ONLY APPLIES TO ELECTRIC ADJUSTING

=Yes
09 Steering angle sensor 1 09/1990 11/1991 32311159460 $293.51 ENDED
09 Steering angle sensor 1 11/1991 32311161536 $291.28
For vehicles with
Electronic Damper Control (EDC)

=Yes
10 Supporting ring 1 05/1990 32311159461 $16.41
For vehicles with
Electronic Damper Control (EDC)
ONLY APPLIES TO ELECTRIC ADJUSTING

=Yes
11 Supporting ring 1 09/1990 32311160494 $10.83 ENDED
12 Screw N-TS4X10-ZN 1 09/1990 07129925826 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
