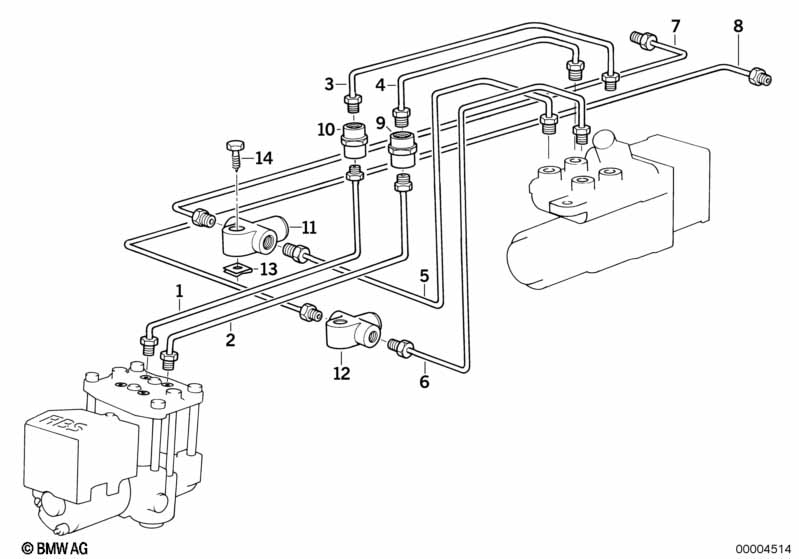

7' E32 750i Brake pipe front ABS/ASC+T
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Pipe | M10/M10-1146MM | 1 | 34326755610 | $8.65 | ||||
| 02 | Pipe | M10/M12-990MM | 1 | 34326755504 | $5.83 | ||||
| 03 | Pipe | M10/M10-260MM | 1 | 34326755555 | $5.83 | ||||
| 04 | Pipe | M12/M12-214MM | 1 | 34326755532 | $5.13 | ENDED | |||
| 05 | Pipe | M12/M12-368MM | 1 | 34326755535 | $4.41 | ||||
| 06 | Pipe | M10/M10-470MM | 1 | 34326755576 | $7.60 | ||||
| 07 | Pipe | M10/M12-4257MM | 1 | 34326755529 | |||||
| 08 | Pipe | M10/M10-3075MM | 1 | 34326755684 | $17.08 | ||||
| 09 | Intermediate piece | M12X1 | 1 | 11/2001 | 34331159361 | $3.68 | ENDED | ||
| 09 | Intermediate piece | M12X1 | 1 | 34326757285 | $4.08 | ||||
| 11 | Intermediate piece | M12X1 | 1 | 34321160029 | $17.30 | ENDED | |||
| 12 | Intermediate piece | M10X1 | 1 | 34321160028 | $7.23 | ||||
| 13 | Body nut | ST6,3-1-ZN | 2 | 04/1994 | 07129925742 | $0.25 | ENDED | ||
| 13 | Body nut | ST6,3-1 | 2 | 04/1994 | 07129901663 | $0.20 | ENDED | ||
| 13 | Body nut | ST6,3-1-ZNS3 | 2 | 07129904231 | |||||
| 14 | Hex head screw | ST6,3X32-C-Z1 | 2 | 07119916975 | $0.36 |
Notes
- ENDED = the part has been discontinued (no longer available).
