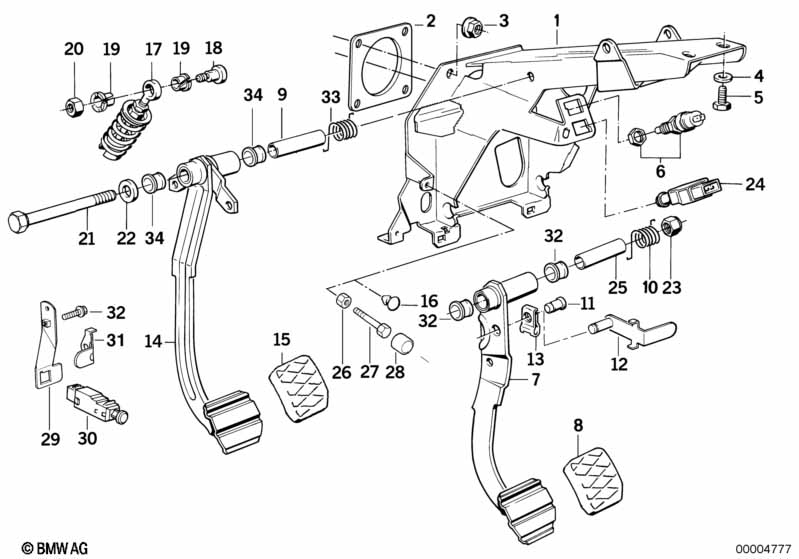

7' E32 750i Pedals/stop light switch

Pedals/stop light switch
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Supporting bracket, foot controls 1 35111160238 $61.10
03 Hex bolt with washer M8X20-Z3-1 5 07119915178 $0.71
04 Washer A8,4 6 24111690120 $0.42
05 Hex bolt M8X18 7 04/1994 07119913627 $0.24 ENDED
05 Hex bolt M8X18-8.8-ZNS3 7 07119904146 $0.65
06 Stop light switch 2-POLIG 1 03/1988 61311379830 $32.07
only in conjunction with
-- Stop light switch 2-POLIG 1 03/1988 61318360420 $32.07
06 Stop light switch 4-POLIG/MECH. 1 61318360417 $32.07
06 Stop light switch 4-POLIG/ELO 1 09/1992 61318356527 $144.29
07 Brake lever 1 35211160949 $33.20 ENDED
08 Rubber pad B=108MM 1 01/1991 35211113906 $14.86
08 Rubber pad B=100MM 1 01/1991 35211160421 $4.47
09 Spacer sleeve 14 X1,8 X70,5MM 1 04/1989 35211150346 $2.58 ENDED
11 Pin 1 09/1989 35211110925 $1.44
12 Pin 1 09/1989 34331161802 $4.55 ENDED
13 Clamp 1 34331120538 $0.60
21 Hex bolt M10X90 1 07119900237 $1.98
For vehicles with
ASC

=Yes
23 Self-locking hex nut M10 1 07129964672 $0.36
24 Stop light switch 2-POLIG 1 03/1988 61311379830 $32.07
only in conjunction with
-- Stop light switch 2-POLIG 1 03/1988 61318360420 $32.07
24 Stop light switch 4-POLIG/MECH. 1 61318360417 $32.07
25 Spacer sleeve 14X70,5MM 1 35211157232
26 Hex nut M6-04-2-ZN 1 07119921054 $0.11
27 Hex bolt M6X35 1 07119913579 $0.24
28 Stopper 1 35211158114 $0.66
29 Clutch switch bracket 1 35111159682 $6.08
32 Bushing 2 35211158290 $1.52
Notes
  • ENDED = the part has been discontinued (no longer available).
