7' E32 750i Splash wall parts

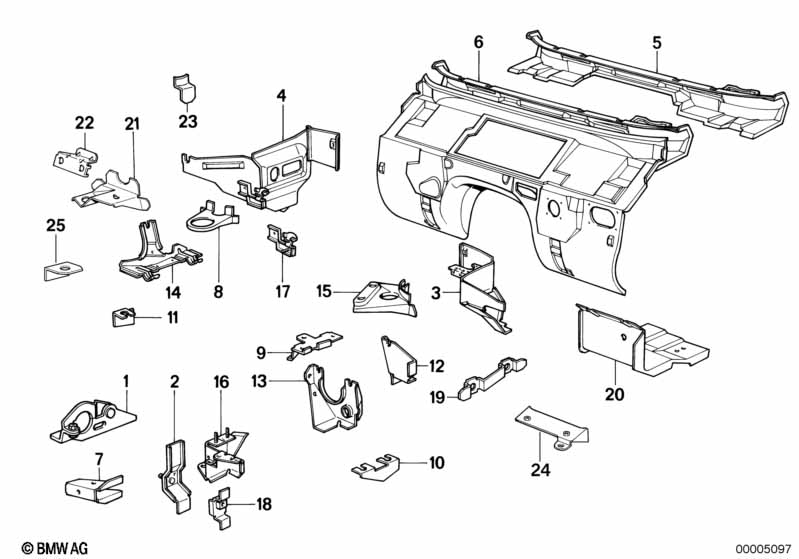

Splash wall parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Support joint assy engine hood left 1 41131928567 $7.98
01 Support joint assy engine hood right 1 41131928568 $7.98
02 Support engine hood stay 1 41111928565 $7.20
03 Partition left 1 41131954671 $35.54
04 Partition right 1 09/1992 41131974498 $49.94 ENDED
04 Partition right 1 09/1992 41138116318 $35.54
07 Bracket headlight 2 41141958040 $5.21 ENDED
09 Bracket, impact sensor, left 1 41148113965 $11.73
09 Bracket, impact sensor, right 1 41148113966 $10.04
10 Bracket ABS-trigger contact 1 41141948891 $3.33
11 Bracket ABS-trigger contact 1 41141948892 $3.23
17 Ignition coil support 1 09/1987 41141978992 $5.95
18 Bracket earth cable 1 41111911957 $1.80
19 Brake pipe bracket 1 41141938203 $2.52 ENDED
20 Reinforcement left 1 41118152507 $26.33 ENDED
20 Reinforcement right 1 41118152508 $26.33 ENDED
21 Bracket head light aim control 1 41141957180 $4.70
22 Head light aim control 1 41141957181 $2.89 ENDED
23 Bracket head light aim control 1 41141958389 $0.98 ENDED
24 Bracket acceleration sensor 2 41148116394 $7.47
25 Hose bracket/levelling device 1 32411141734 $38.22
Notes
  • ENDED = the part has been discontinued (no longer available).
