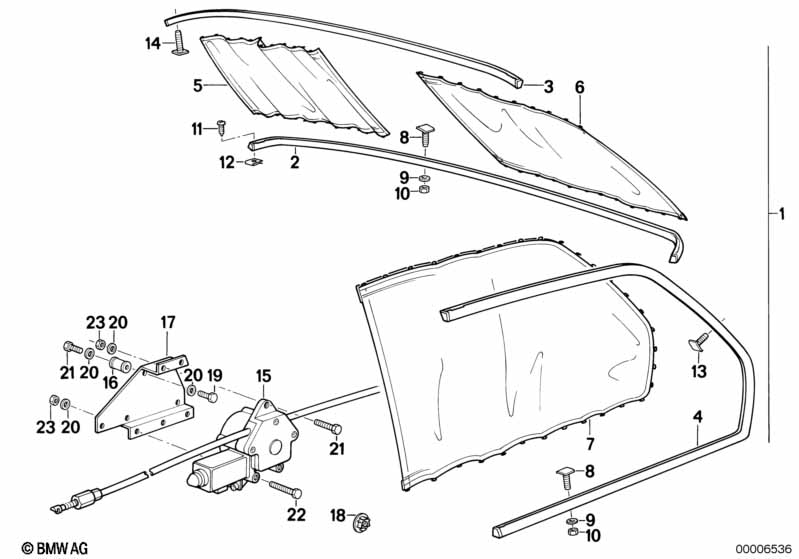

7' E32 750i Curtain

Curtain
No. Description Supp. Qty  From   Up To  Part Number Price Notes
02 Curtain rail 1 51128111218 ENDED
03 Curtain rail 1 51128111217 ENDED
04 Curtain rail door left 1 51168111209 ENDED
04 Curtain rail door right 1 51168111210 ENDED
05 Curtain right 1 51128111208 ENDED
06 Curtain left 1 51128111207 ENDED
07 Curtain left 1 51168111213 ENDED
07 Curtain right 1 51168111214 ENDED
08 Screw M4X15 6 51168101001 ENDED
09 Washer A4,3 6 07119931027 $0.36 ENDED
09 Washer 9X4,3X0,8-200HV 6 07119904205 $0.07
10 Self-locking hex nut M4 6 08/1994 07129922452 $0.56 ENDED
10 Hex nut M4-A2-70 6 07129906098 $1.00
11 Fillister head self-tapping screw ST2,9X19 2 51468101160 ENDED
12 Body nut ST2,9-1 X 07129925706 $0.09
13 Clamp 8 51168105216 ENDED
14 Clamp 6 51468101269 $0.26 ENDED
15 Drive curtain door right 1 67651388693 ENDED
15 Drive curtain rear right 1 67651388815 ENDED
15 Drive curtain door left 1 67651390261 ENDED
15 Drive curtain rear left 1 67651390262 ENDED
16 Suspension 25X20MM 3 67651390266 ENDED
16 Suspension 15X15MM 8 67651390267 ENDED
17 Holder 2 67651388374 ENDED
18 Blind plug D=18.5MM 2 61131379865 $2.65
19 Hex bolt M4X6 X 07119913071 ENDED
20 Washer 4,3 X 04/1994 07119936412 $0.09 ENDED
20 Washer X 07119904207
21 Hex bolt M4X12 4 07119913084 $0.11 ENDED
22 Hex bolt M4X25 8.8ZN 3 07119913097 $1.59 ENDED
23 Hex nut M4 5 07119922028 $0.64
24 Hex bolt M4X12 3 07119913084 $0.11 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
