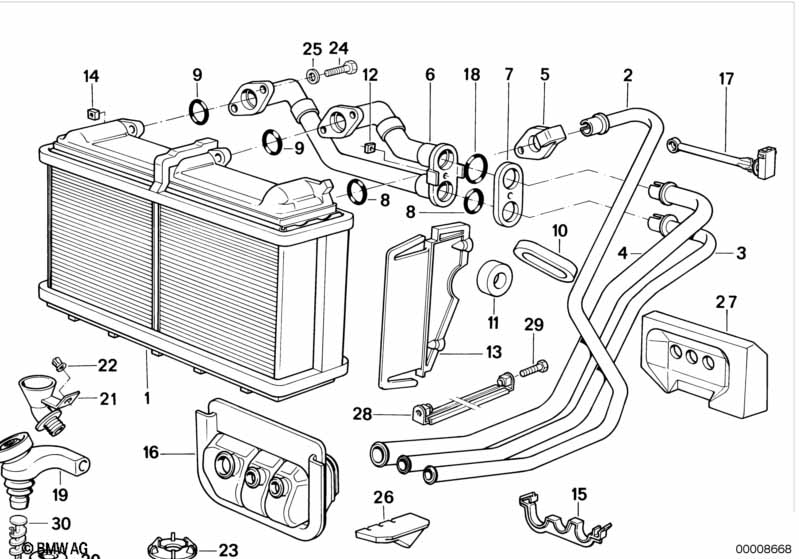

7' E32 750i Radiator,automatic air condit./microfilt

No.	Description	Supp.	Qty	From	Up To	Part Number	Price		Notes
01	Heater radiator		1	06/1990		64118372523	$200.33
02	Pipe		1	06/1990		64111379933	$39.53
03	Pipe		1	06/1990		64111379934	$33.30
04	Pipe		1	06/1990		64111379932	$33.30
05	Flange		1	06/1990		64111374236	$4.02
06	Pipe		1	06/1990		64118372524	$73.03
07	Flange		1	06/1990		64111378756	$4.02
08	Gasket ring	D=13,98MM	2	06/1990		64111374238	$1.82
09	Gasket ring	D=20,29MM	2	06/1990	11/1997	64118390266	$0.75		ENDED
09	Gasket ring	D=20,29MM	2	06/1990		64118379131	$0.51
10	Gasket ring		1	06/1990		64111374369	$2.24
11	Gasket ring		1	06/1990		64111374370	$1.07
12	Square nut	M5	1	06/1990		07119921213			ENDED
13	Cover		1	06/1990		64111374371	$7.56
14	Square nut	M5	5	06/1990		07119921431	$0.36
15	Holder		1	06/1990		64111374397	$4.12		ENDED
16	Rubber grommet		1	06/1990		64118390864	$19.78
17	Temperature sensor, heater		1	06/1990		64111374242	$33.45
18	Gasket ring	D=17.12MM	1	06/1990	12/1997	64111355780	$1.41		ENDED
18	Gasket ring	D=17.12MM	1	06/1990		64118377824	$1.82
19	Water drain, left		1	06/1990		64111374133	$13.89
19	Water drain, right		1	06/1990		64111374134	$13.89
19	Water drain, left		1	06/1990		64118391145	$10.86
19	Water drain, right		1	06/1990		64118391146	$10.86
20	Rubber grommet		2	06/1990		64111378311	$1.23
21	Funnel		2	06/1990		64111378307	$1.37
22	Plastic nut	M6	2	06/1990		16131176747	$0.53
23	Lock Ring		2	06/1990		64111379296	$0.88
24	Hex bolt	M5X20	6	06/1990	08/1990	07119913251	$0.13		ENDED
24	Hex bolt	M5X20	6	06/1990		07119913116	$1.20
25	Spring washer	B5	6	06/1990		07119933060	$0.11
26	Gasket		1	06/1990		64111382361	$34.45
27	Gasket		1	06/1990		64111382440	$39.34		ENDED
27	Grommet for water pipe		1	06/1990		64118391164	$12.22
30	Absorber	IHKA	1	06/1990	04/1995	64118390460	$0.63		ENDED
30	Absorber		1	06/1990		64118369604	$0.67		ENDED

Notes

• ENDED = the part has been discontinued (no longer available).
