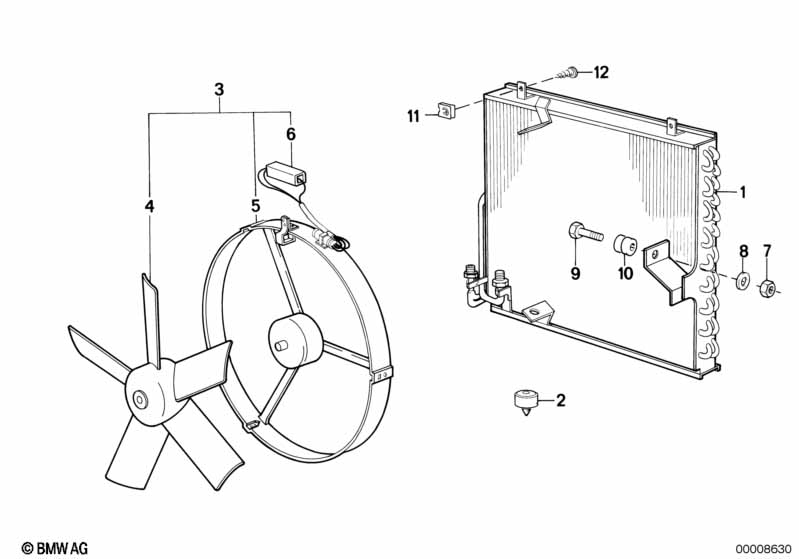

7' E32 750i Climate capacitor/additional blower
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Condenser | R12/R134A | 1 | 12/2004 | 64538391316 | $549.08 | ENDED | ||
| 01 | Condenser | R12/R134A | 1 | 64536965952 | $540.42 | ||||
| 02 | Rubber Mounting | 2 | 64531378239 | $1.82 | |||||
| 03 | Additional fan | 1 | 64541392913 | $348.67 | |||||
| 06 | Resistor | MAGNA/SIEMENS | 1 | 05/1994 | 64541386265 | $45.02 | ENDED, SI 120787777 | ||
| 06 | Resistor | BOSCH | 1 | 17401373177 | $32.10 | SI 120787777 | |||
| 06 | Repair kit resistor | MAGNA | 1 | 64121388069 | $58.98 | ||||
| 07 | Self-locking hex nut | M5 | 3 | 02/1996 | 63142322408 | $0.26 | ENDED | ||
| 07 | Hex nut | M5 ZNS 3 | 3 | 07119964653 | $0.38 | ENDED | |||
| 07 | Hex nut | M5 | 3 | 07119905710 | $2.83 | ||||
| 08 | Washer | 3 | 17401354523 | $0.63 | |||||
| 09 | Fit bolt | M5 | 3 | 17401354522 | $1.17 | ||||
| 10 | Rubber grommet | 3 | 17401362128 | $3.37 | |||||
| 11 | Body nut | B6,3-6 | 2 | 16111152613 | $0.35 | ||||
| 12 | Hex head screw | ST6,3X13-F-Z2 | 2 | 07119916964 | $0.47 |
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
