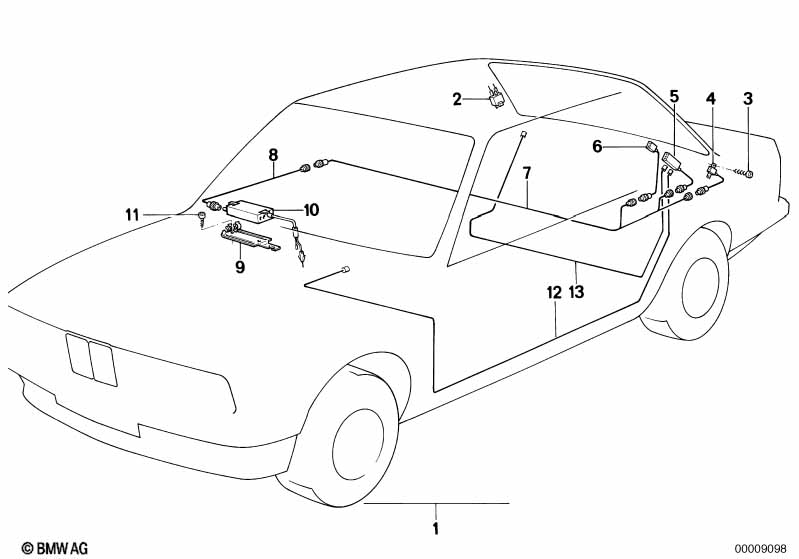

7' E32 750i Single parts f antenna-diversity
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO RADIO W.ZF-BUSH | ||||||||
| 02 | Trap circuit | 1 | 12/1988 | 65248356092 | $44.37 | ||||
| 03 | Hex head screw | L=22 MM | 2 | 12/1988 | 65221382219 | ||||
| 04 | Amplifier | 1 | 12/1988 | 65258350126 | $106.75 | ENDED | |||
| 05 | Amplifier for horizontal antenna | 1 | 12/1988 | 65248354092 | $85.93 | ENDED | |||
| 05 | Amplifier | 1 | 12/1988 | 65248351244 | |||||
| For vehicles with Laminated glass |
=Yes |
||||||||
| 05 | Amplifier VSG | 1 | 12/1988 | 65241382432 | $127.30 | ||||
| 06 | Amplifier | 1 | 12/1988 | 65258350126 | $106.75 | ENDED | |||
| 07 | Tubing | 1 | 12/1988 | 65251391588 | $75.89 | ||||
| 09 | Holder | 1 | 12/1988 | 65251379768 | $21.32 | ENDED | |||
| 11 | Fillister head self-tapping screw | ST3,9X9,5-F | 2 | 12/1988 | 07119907910 | $0.38 | |||
| 12 | Antenna cable | 5000MM | 1 | 12/1988 | 65248350099 | $25.42 | |||
| only in conjunction with | |||||||||
| -- | Antenna adapter tubing | 1 | 12/1988 | 65121394202 | $14.22 | ||||
| ONLY APPLIES TO RADIO MEXICO CD |
|||||||||
| 13 | Tubing | DIVERSITY | 1 | 12/1988 | 65251382438 | $107.69 | ENDED | ||
Notes
- ENDED = the part has been discontinued (no longer available).
