7' E32 750i Radio/telephone antenna f official veh.

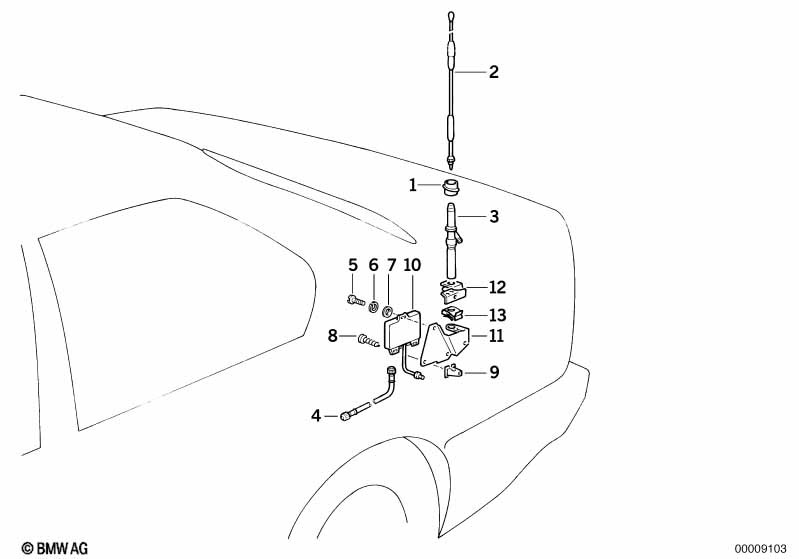

Radio/telephone antenna f official veh.
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Grommet 1 65211384477 $3.60
02 Antenna radiator 1 65211378517 $74.12 ENDED, +core
03 Antenna base 2M/4M BAND 1 65211378516 $68.91 ENDED, +core
04 Antenna cable 5050MM 1 61128351612 ENDED
05 Fillister head screw M5X10 1 07119907639 $0.40
06 Spring washer B5 1 07119933060 $0.11
07 Washer A5,3-140 HV-ZNS 1 04/1994 07119931029 $0.40 ENDED
07 Washer 10X5,3X1-200 HV 1 07119904206
07 Washer 5,3-140 HV-ZNS 1 07119936439 $0.40
07 Washer 5,3 SW 1 04/1994 07119931030 $1.34 ENDED
07 Washer A5,3-ZNS 1 07119902255 ENDED
08 Fillister head self-tapping screw ST4,8X13-Z1 1 07119907956 $0.18
09 Expanding nut ST 4.8 1 63121374075 $0.23
10 Antenna diplexer 1 65211378518 ENDED, +core
11 Holder 1 65611384426 ENDED
12 Holder 1 65218351764 ENDED
13 Clamp 1 65211376009 $1.83
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
