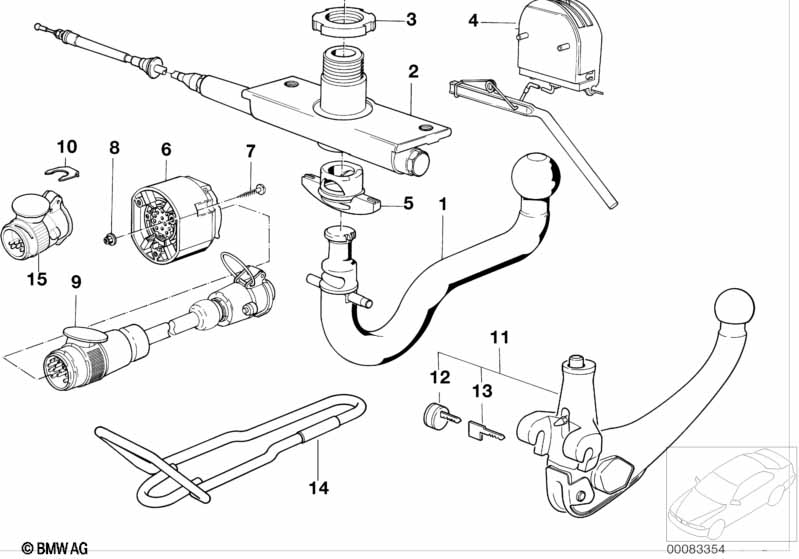

7' E32 750i Single parts of trailer hitch
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Removable ball | ORIS | 1 | 71601135046 | ENDED | ||||
| only applies to | |||||||||
| -- | Towing hitch, detachable | ORIS | X | 71601130292 | ENDED | ||||
| -- | Towing hitch, detachable | X | 71601136361 | $1277.82 | |||||
| 02 | Support for ball head | ORIS | 1 | 71601130208 | ENDED | ||||
| only applies to | |||||||||
| -- | Removable ball | ORIS | X | 71601130209 | ENDED | ||||
| -- | Removable ball | ORIS | X | 71601135046 | ENDED | ||||
| 03 | Nut | ORIS | 1 | 71601130294 | ENDED | ||||
| 04 | Input unit | ORIS | 1 | 71601130419 | ENDED | ||||
| 05 | Protection cap | ORIS | 1 | 71601130266 | |||||
| 06 | Plug-in socket | 1 | 61131378999 | $76.67 | |||||
| 07 | Fillister head screw | M5X35 | 3 | 07119907698 | $0.27 | ||||
| 08 | Self-locking hex nut | M5-8-ZN | 3 | 04/1994 | 07119915703 | $0.18 | ENDED | ||
| 08 | Hex nut | M5-8-ZNS | 3 | 04/1994 | 07119915707 | $0.88 | ENDED | ||
| 08 | Hex nut | M5-10-ZNNIV SI | 3 | 07119906520 | |||||
| 09 | Adapter | 1 | 61131382153 | $145.08 | |||||
| 10 | Clamp | 2 | 61131382132 | ||||||
| 11 | Removable ball | 1 | 71601136363 | ENDED | |||||
| only applies to | |||||||||
| -- | Towing hitch, detachable | X | 71601136361 | $1277.82 | |||||
| 12 | Key (Code) | ORIS | X | 71601137621 | |||||
| 12 | Key (blank) | ORIS | X | 71601137622 | |||||
| 13 | Key (Code) | ORIS | X | 71601137621 | |||||
| 14 | Lever | 1 | 71601135368 | ENDED | |||||
| only applies to | |||||||||
| -- | Towing hitch, detachable | ORIS | X | 71601130292 | ENDED | ||||
| 15 | Adapter | 1 | 61136909012 | $56.12 | ENDED | ||||
| 15 | Adapter | 13 - 7 | 1 | 61136942997 | $34.12 | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
