7' E38 735i Fuel pipe and mounting parts

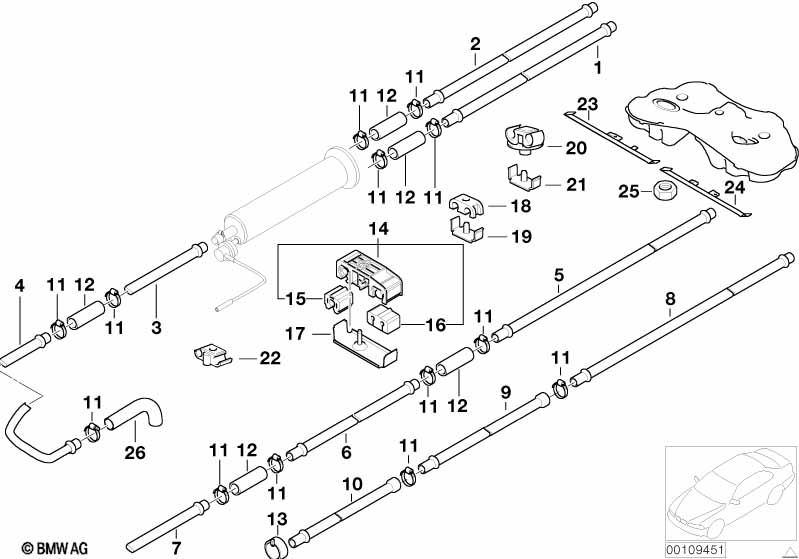

Fuel pipe and mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i FUEL FILTER
see main section 13
01 Rear fuel feed line 1 09/1998 16121184169 $7.45
02 Rear fuel return line 1 09/1998 16121184175 $7.10
03 Rear fuel return line 1 09/1998 16121184175 $7.10
04 Front fuel feed line 1 09/1998 16111183982 $20.43
05 Vent pipe AKF 1 16131182184 $7.45
06 Vent pipe AKF 1 16131182246 $7.45
07 Vent pipe AKF 1 16131183632 $25.35
only in conjunction with
-- Hose 1 16131183635 $31.92 ENDED
-- Hose clamp 12,8-15,3 1 16121180240 $0.77
11 Hose clamp L12-15 X 07129952104 $1.18
12 Fuel hose 8X13MMX1000 X 13537563456 $44.77
14 Tubing support 4-FACH 3 16121181593 $2.17
15 Rubber buffer 3 16121178832 $2.08
16 Rubber buffer 3 37131091419 $0.78
17 Fuel pipe bracket 3 16121181594 $2.77
18 Clamping 1 16121107928 $4.00
19 Holder 1 16121155060 $1.08
20 Clip 2 16121182164 $0.67
21 Clamp 2 16121183041 $1.43
22 Pipe clip 1 16121179396 $1.08
For vehicles with
Self-levelling suspension

S220A=Yes
23 Stone chip right 1 16111182036 $15.97
24 Stone chip left 1 16111182035 $15.97
25 Plastic nut M6 6 16131176747 $0.53
26 Hose elbow E8X13X70 1 09/1998 16121183281 $18.13
Notes
  • ENDED = the part has been discontinued (no longer available).
