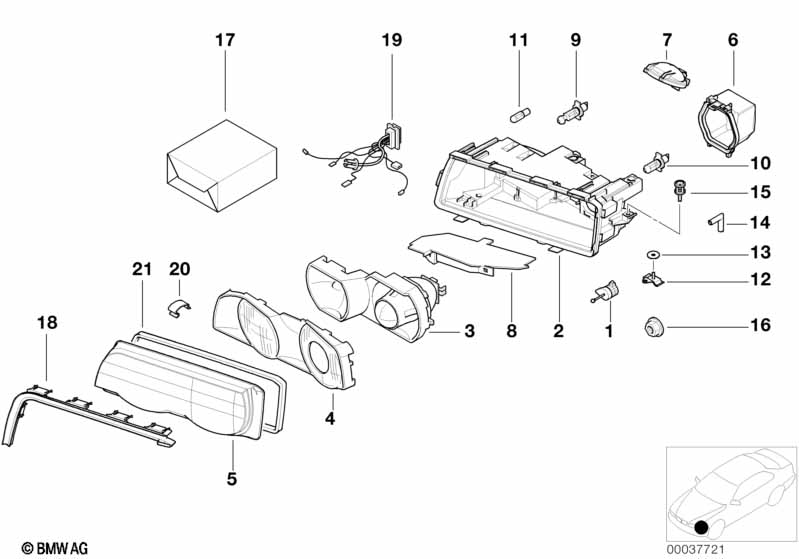

7' E38 735i Single components for headlight

Single components for headlight
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Head light vertical aim control 2 09/1998 67168362048 $76.77
02 Left headlamp housing 1 09/1998 63128381321 +core
02 Right headlamp housing 1 09/1998 63128381322 +core
03 Lamp insert left 1 09/1998 63128381457 +core
03 Lamp insert right 1 09/1998 63128381458 +core
04 Left lamp lens support 1 09/1998 63128381329 +core
04 Right lamp lens support 1 09/1998 63128381330 +core
For vehicles with
Chrome Line Interieur

S345A=Yes
04 Right lamp lens support 1 09/1998 63128386322 $142.87 +core
04 Left lamp lens support 1 09/1998 63128386321 $142.87 +core
05 Left cover glass 1 09/1998 63128381327 $190.18
only in conjunction with
05 Right cover glass 1 09/1998 63128381328 $190.18
only in conjunction with
-- Headlight gasket 1 09/1998 63128361290 $10.95
06 Low beam cover 2 09/1998 63128381326 $9.33
07 High beam cover 2 09/1998 63128381325 $7.88
08 Bracket headlight left 1 09/1998 63128361283 $24.27 ENDED
08 Bracket headlight left 1 09/1998 63126902507 $27.75
08 Bracket headlight right 1 09/1998 63128361284 $8.77 ENDED
08 Bracket headlight right 1 09/1998 63126902508 $27.75
09 Bulb HB3 12V 60W 2 09/1998 63217160785 $18.86
10 Longlife bulb 12V 55W H7 2 09/1998 12/2004 63216926911 $19.60 ENDED
10 Longlife bulb 12V 55W H7 2 09/1998 63217160781 $20.90
10 Bulb H7/55W 2 09/1998 63217160780 $18.86
11 Longlife bulb 12V 5W 2 09/1998 12/2004 63216926927 $1.53 ENDED
11 Longlife bulb 5W 2 09/1998 63217160797 $1.96
12 Bracket headlight 2 09/1998 63129068594 $8.82
13 Spacer bush SCHWARZ 4 09/1998 63128372949 $4.62
13 Spacer bush GRAU 4 09/1998 63128372950 $0.62
14 Ventilation grommet 2 09/1998 63128361282 $4.75
15 Flasher securing bush 2 09/1998 63128362531 $5.72
16 Hex nut with plate M6 8 09/1998 51118362524 $0.48 ENDED
16 Hex nut M6 8 09/1998 07/2001 07146961200 $0.47 ENDED
16 Self-locking hex nut M6 8 09/1998 64509123157 $0.70
17 Repair kit headlight 1 09/1998 63128381470 $7.08
18 Gasket left 1 09/1998 63128387085 $46.92
18 Gasket right 1 09/1998 63128387086 $46.92
19 Wiring head light 1 09/1998 63128381465
20 Headlight clip 12 09/1998 63126902506 $3.32
21 Headlight gasket 2 09/1998 63128361290 $10.95
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
