7' E38 740i Electr.adjust.seat single components

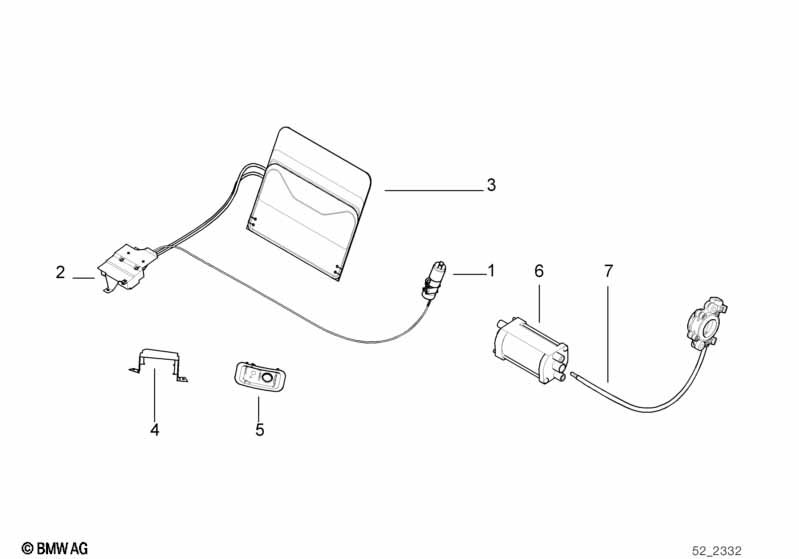

Electr.adjust.seat single components
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Drive unit lordosis pad 1 09/1994 07/1999 52208197035 $109.49 ENDED
01 Drive unit lordosis pad 1 07/1999 52207001675 $121.49 ENDED
02 Valve unit 1 09/1994 07/1999 52208197036 $320.17 ENDED, +core
02 Valve unit 1 07/1999 52207001676 $349.39 ENDED
03 Left lordosis pad 1 09/1994 52208197037 $36.31 ENDED, +core
03 Right lordosis pad 1 09/1994 52208197038 $36.31 ENDED, +core
04 Bracket left 1 09/1994 52208186669 $12.22
04 Bracket right 1 09/1994 52208186670 $12.22
05 Switch covering left GRAU 1 09/1994 52208177367 $8.45
05 Switch covering right GRAU 1 09/1994 52208177368 $7.97
05 Switch covering left SCHWARZ 1 09/1994 52208177369 $8.45
05 Switch covering right SCHWARZ 1 09/1994 52208177370 $9.25
05 Switch covering left MARINEBLAU 1 09/1994 52208177371 $6.58 ENDED
05 Switch covering right MARINEBLAU 1 09/1994 52208177372 $6.58 ENDED
05 Switch covering left SANDBEIGE 1 09/1994 52208177373 $9.25
05 Switch covering right SANDBEIGE 1 09/1994 52208177374 $7.97
05 Switch covering left LAVENDELGRAU 1 09/1994 52208177375 $6.58
05 Switch covering right LAVENDELGRAU 1 09/1994 52208177376 $6.58
05 Switch covering left DUNKELGRUEN 1 09/1994 52208177377 $6.58 ENDED
05 Switch covering right DUNKELGRUEN 1 09/1994 52208177378 $6.58 ENDED
05 Switch covering left PASTELLGRUEN 1 09/1994 52208177379 ENDED
05 Switch covering right PASTELLGRUEN 1 09/1994 52208177380 ENDED
05 Switch covering right TOBACCOBRAUN 1 09/1994 52208260482 $7.97 ENDED
05 Switch covering left TOBACCOBRAUN 1 09/1994 52208260483 $6.58 ENDED
05 Switch covering right PEARLBEIGE 1 09/1994 52208260484 $6.58 ENDED
05 Switch covering left PEARLBEIGE 1 09/1994 52208260485 $7.97 ENDED
06 Drive f vertical and backr.tilt adjustm. FA. RHW/BOSCH 2 09/1994 52108350152 $118.95
07 Gearbox left 2 09/1994 52208203285 $71.34 +core
07 Gearbox right 2 09/1994 52208203286 $71.34 ENDED, +core
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
