7' E38 740i Seat, front, Active seat single parts

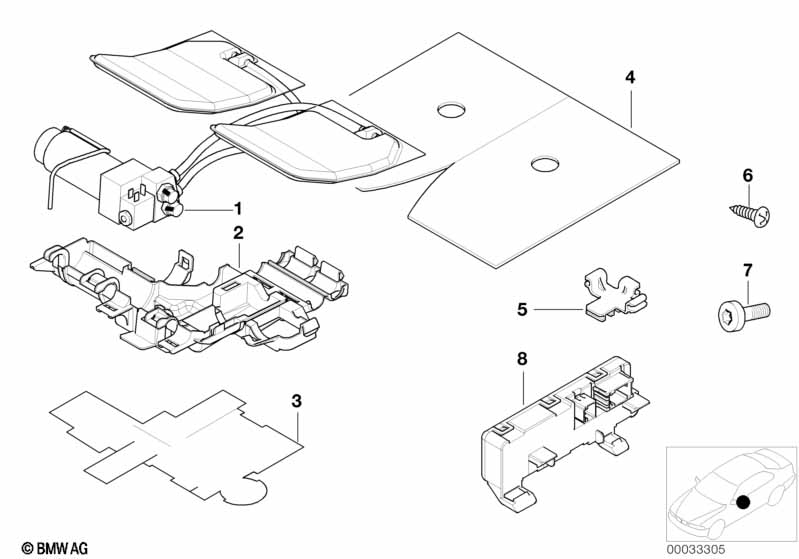

Seat, front, Active seat single parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i only applies to
SA 455 = Active seat
and
SA 456 = comfort seat
For vehicles with
Active seat for driver and passenger
or
Seat adjuster, electric, with memory

S455A=Yes

S459A=Yes
01 Drive, active seat 2 09/1998 52108234873 $1168.01
For vehicles with
Active seat for driver and passenger
and
Seat adjuster, electric, with memory

S455A=No

S459A=No
01 Drive, active seat 2 09/1998 52107032761 $698.87 ENDED
02 Bracket, drive, active seat 2 09/1998 52108234874 $13.09
03 Sound protection cap,active seat drive 2 09/1998 52108264249 $30.97
04 Base 2 09/1998 52108264250 $16.56
05 Plug-in connection bracket 2 09/1998 61138365551 $1.51
06 Fillister head self-tapping screw 4,2X16 8 09/1998 07/2001 51228215987 $0.33 ENDED
06 Sheet metal screw 4,2X16MM 8 09/1998 07119905243 $0.19
07 Fillister-head screw 4 09/1998 51108238067 $0.39
08 Control unit, active seat ventilation 2 09/1998 61356901558 $209.49
Notes
  • ENDED = the part has been discontinued (no longer available).
