7' E38 740i Housing parts - air conditioning

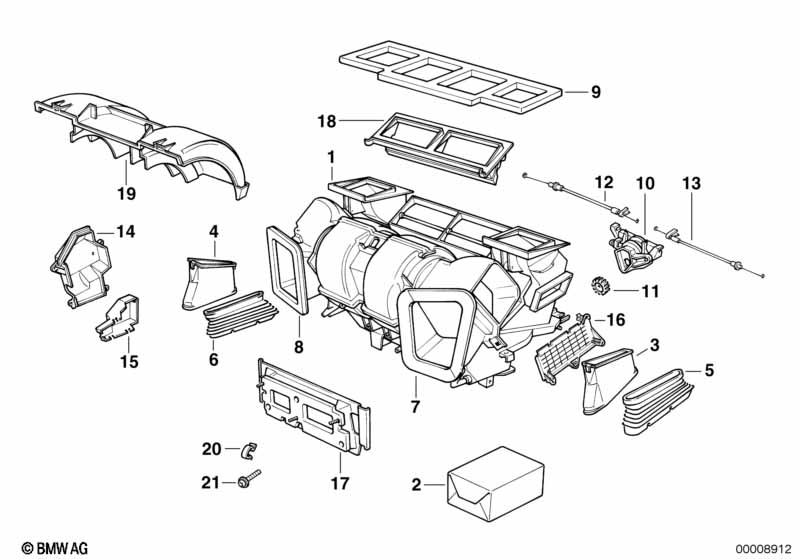

Housing parts - air conditioning
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Empty housing f heater/air condit.unit 1 07/1995 64118372184 $1233.18 ENDED
only in conjunction with
-- Blower unit 1 07/1995 64118372183 $320.03 ENDED
01 Empty housing f heater/air condit.unit 1 07/1995 09/1997 64118372184 $1233.18 ENDED
02 Set small parts f air cond.adjust.lever SIEMENS/VALEO 1 09/1997 64118391688 $71.15
03 Rear left heater duct connector 1 09/1997 64118391847 $6.36 ENDED
04 Rear right heater duct connector 1 09/1997 64118391848 $6.36 ENDED
05 Rear left heater duct grommet 1 09/1997 64118391127 $4.42
06 Rear right heater duct grommet 1 09/1997 64118391128 $4.42
07 Left fresh air connection gasket 1 09/1997 64118391395 $9.84 ENDED
08 Right fresh air connection gasket 1 09/1997 64118391396 $11.16 ENDED
09 Sealing frame 1 09/1997 64118391812 $54.27
10 Gearbox flap position 1 09/1997 64118391393 $132.02
11 Left gear wheel 1 09/1997 64118391867 ENDED
12 Bowden cable defroster 1 09/1997 64118391854 $9.60 ENDED
13 Bowden cable air refreshing 1 09/1997 64118391853 $14.17
14 Evaporator cover 1 09/1997 64118391849 $20.87 ENDED
15 Floor lever cover 1 09/1997 64118391850 $3.65 ENDED
16 Heater radiator cover 1 09/1997 64118391846 $6.92 ENDED
17 Support.plate f heater/air conditioning 1 09/1997 64118391397 $38.22 ENDED
18 Air channel 1 09/1997 64118391845 $13.28 ENDED
19 Covr blower 1 09/1997 64118391844 $14.98
20 Clamp X 09/1997 64111370938 $0.38
21 Screw X 09/1997 64118391918 $0.32
Notes
  • ENDED = the part has been discontinued (no longer available).
