7' E38 740i Heater radiator automatic air condition

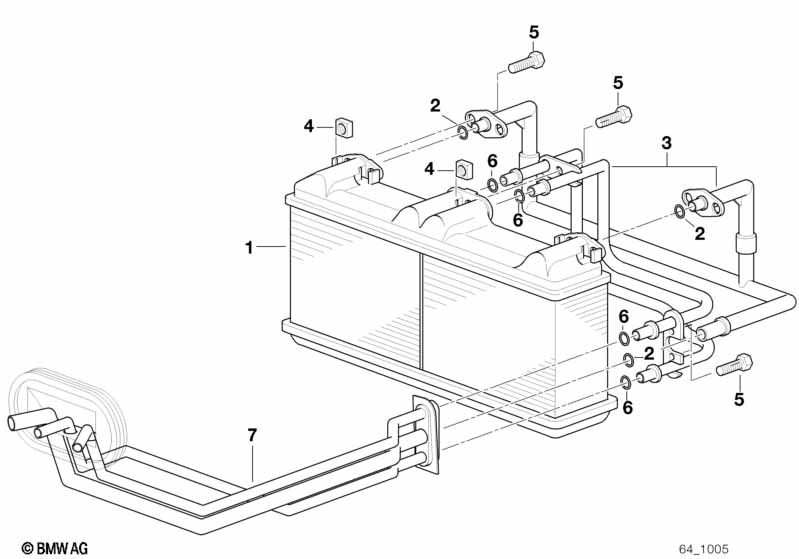

Heater radiator automatic air condition
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Heater radiator with aluminium water box 1 09/1996 64118373175 $202.15
only in conjunction with
-- Double pipe 1 09/1996 64118373177 $125.23
01 Heater radiator with aluminium water box 1 09/1996 64118373175 $202.15
02 Gasket ring D=17.12MM 1 12/1997 64111355780 $1.41 ENDED
02 Gasket ring D=17.12MM 1 64118377824 $1.82
03 Double pipe 1 09/1996 64118391811 $153.23 ENDED
03 Double pipe 1 09/1996 64118373177 $125.23
only in conjunction with
-- Heater radiator with aluminium water box 1 09/1996 64118373175 $202.15
03 Double pipe 1 09/1996 64118373177 $125.23
04 Square nut M5 X 07119921431 $0.36
05 Hex bolt M5X20 X 08/1990 07119913251 $0.13 ENDED
05 Hex bolt M5X20 X 07119913116 $1.20
06 Gasket ring D=13,98MM 2 64111374238 $1.82
07 Triple pipe 1 64518391367 $121.03
Notes
  • ENDED = the part has been discontinued (no longer available).
