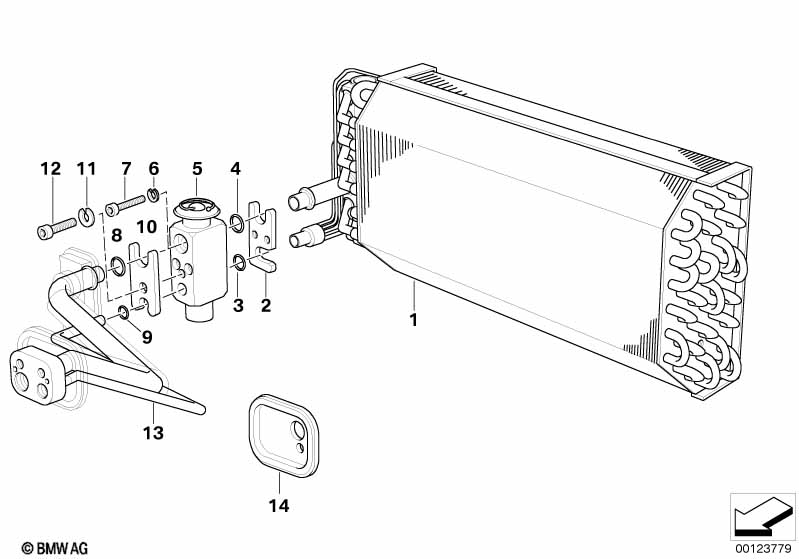

7' E38 740i Automatic air conditioning evaporator

Automatic air conditioning evaporator
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Evaporator 1 64118372191 $741.40
02 Plate 1 64111380572 $7.27
03 Gasket ring D=11.1MM 1 05/1995 64508390602 $1.49
03 Gasket ring D=11.1MM 1 64508390602 $1.49
04 Gasket ring D=14MM 1 64508390603 $1.49
05 Expansion valve R12/R134A 1 09/1997 64118362851 $145.03
05 Expansion valve 1 09/1997 07/2005 64118371459 $130.73 ENDED
05 Expansion valve 1 09/1997 64116981454 $145.03
07 Fillister head with washer M5X35 2 64116910423 $1.77
08 Gasket ring D=17,17MM 1 64508390604 $2.02
09 Gasket ring D=7,65MM 1 64508390601 $1.93
10 Plate 1 64111380573 $8.10
only in conjunction with
-- Fillister-head screw M8X50 1 07119901034 $1.42
11 Spring washer 6-ZN 1 07119933231 $0.09
12 Fillister-head screw M6X16-ZNS 1 07119901438 $0.60 ENDED
12 ISA screw M6X16-8.8-ZNNIV 1 07129905536 $0.64
13 Coolant pipe 1 09/1997 64118391368 $107.15
13 Coolant pipe 1 09/1997 64118378531 $113.50
14 Grommet 1 09/1997 64118391816 $6.38 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
