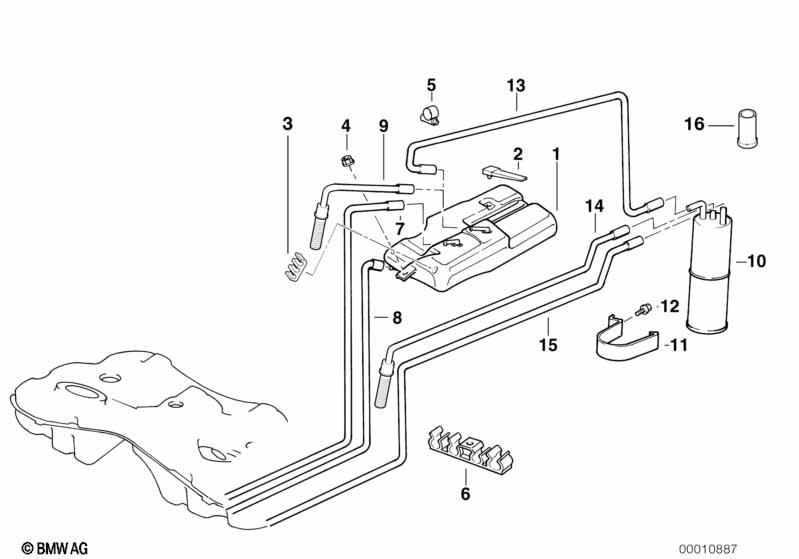

7' E38 740i Exp.tank/activated Carbon container

Exp.tank/activated Carbon container
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Expansion tank 1 09/1998 16131181574 $149.61
02 Support 1 16131182575
03 Clip 1 16131182249 $0.57
04 Plastic nut for coarse threaded pin 1 16131183133 $0.37
05 Hose clamp L12-15 3 07129952104 $1.18
06 Tubing support 1 16131182264 $1.65
07 Pipe 1 1 09/1998 16131182211 $14.28
08 Pipe 2 1 09/1998 16131182212 $14.28
For vehicles with
without catalytic converter

S199A=Yes
09 Pipe 3 1 09/1998 16131184155 $9.57 ENDED
10 Activated Charcoal Filter 1 11/1996 16136752623 $131.82
13 Activated carbon container pipe 1 09/1998 16131182177 $14.08
14 Vent pipe 1 16131184554 $10.13
15 Activated carbon container pipe 1 09/1998 16131182182 $14.08
16 Rubber grommet 3 03/1997 64128364482 $1.82
Notes
  • ENDED = the part has been discontinued (no longer available).
