7' E38 740i Belt Drive Water Pump/Alternator

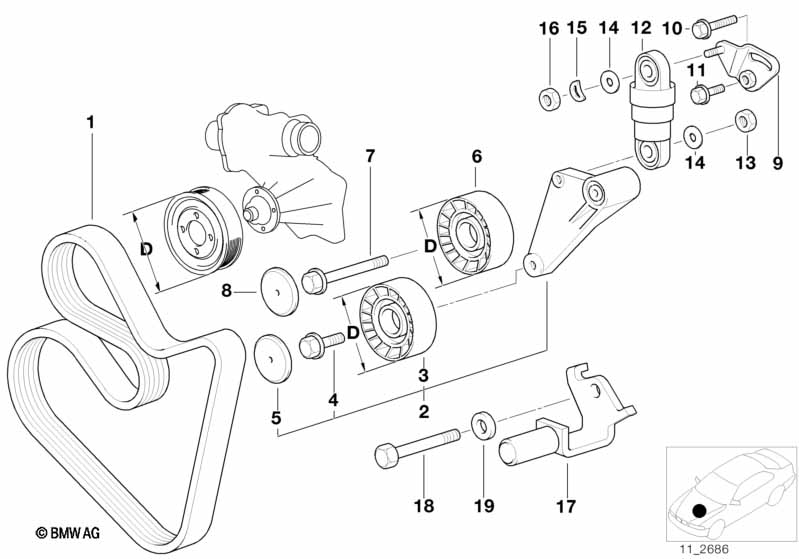

Belt Drive Water Pump/Alternator
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Ribbed v-belt 7K X 1629 1 04/1997 11287833264 $45.22
02 Adjusting pulley 1 04/1997 11281742013 $138.08
03 Idler D=70MM 1 04/1997 11281731220 $78.62
04 Hex bolt with washer M8X20-ZNS3 1 04/1997 07147165618 $0.73
05 Protection cap adjusting pulley 1 04/1997 11281727159 $2.37
06 Deflection pulley D=70MM 1 04/1997 11281704500 $46.81
07 Fit bolt M8X65 1 04/1997 07119900236 $3.00
08 Protection cap adjusting pulley 1 04/1997 11281727159 $2.37
09 Adjust-lever 1 04/1997 11281704935 $4.52
10 Hex bolt with washer M8X35-Z1 1 04/1997 07119901686 $0.54
11 Hex bolt with washer M8X25-Z1 1 04/1997 07119901687 $0.62
12 Belt tensioner 1 04/1997 11281736857 $91.76
13 Hex bolt with washer M8X30-Z3 1 04/1997 07119915085 $0.62
14 Washer 2 04/1997 11281715625 $0.22
15 Wave washer B8 1 04/1997 07119932095 $0.09 ENDED
16 Hex nut M8-8-ZNNIV SI 1 04/1997 07119905515 $0.16
Notes
  • ENDED = the part has been discontinued (no longer available).
