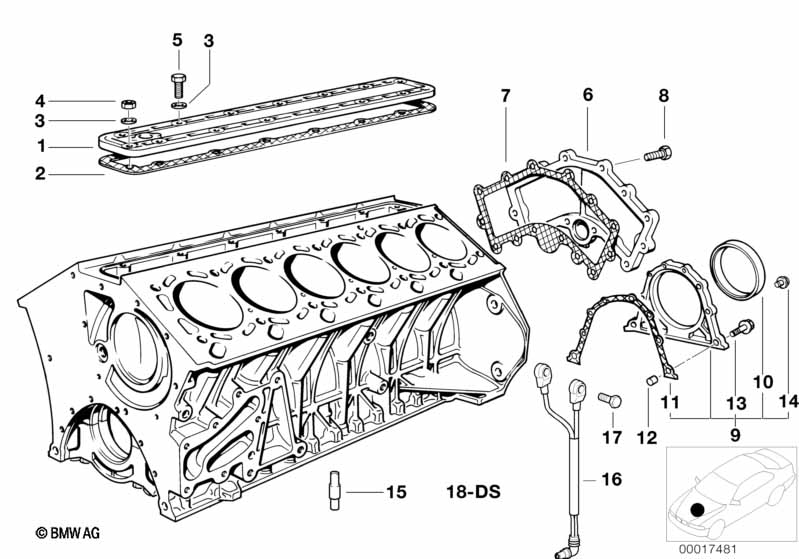

7' E38 750i Engine Block Mounting Parts

Engine Block Mounting Parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cover 1 09/1998 11141704654 $76.03
02 Gasket Asbestos Free 1 11141736959 $25.13 SI 170190201
03 Wave washer B6 14 07119932099 $0.38
04 Hex nut M6-8-ZNNIV SI 2 07119905543 $0.38
05 Hex bolt M6X28-8.8-ZNS 12 07119913021 $2.30
06 Cover 1 11141736975 $54.10
07 Gasket Asbestos Free 1 11141733922 $7.81
08 Hex bolt with washer M6X18-U1 14 07119905399 $0.36
09 Set of covers 1 11141745095 $93.61
10 Shaft seal 100X125X13 1 11141710247 $64.06
11 Gasket Asbestos Free 1 11141736521 $2.62
12 Dowel D=10,5MM 2 11121726238 $1.62
13 Hex bolt with washer M8X35-Z3 2 07119912492 $0.33
14 Hex bolt with washer M6X25 6 11121736603 $0.65
15 Oil Spraying Nozzle 12 11421708464 $9.49
16 Ping Sensor 4 09/1997 12141741131 $90.58
17 Hex bolt M8X30-8.8-ZNS3 4 07119902901 $0.25
18 Gasket Set Engine Block Asbesto Free 1 11119068117 $267.70
Notes
  • SI = Service Information
