7' E38 740iL Singl.parts subwooferbox top-hifi system

Singl.parts subwooferbox top-hifi system

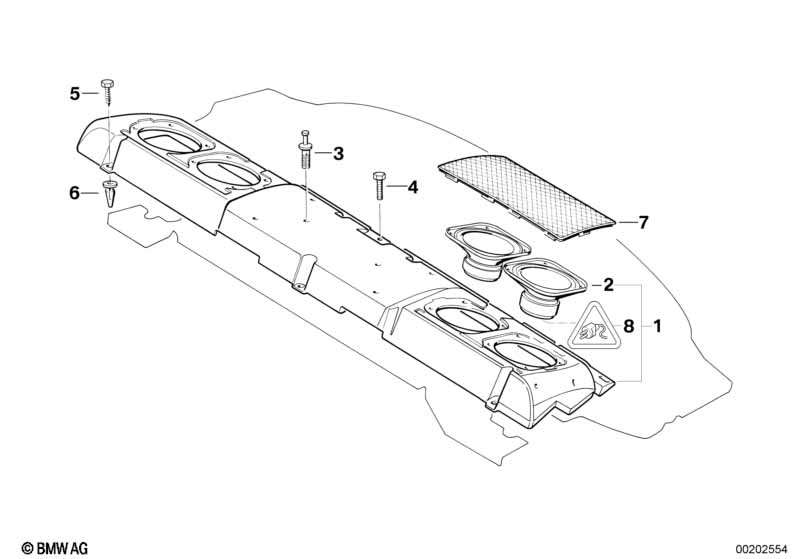

No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
HiFi System Professional DSP

S677A=Yes
01 Subwooferbox top-hifi system 1 65138372077 $982.90 +core
02 Subwoofer top-hifi system 4 65138352453 $98.12 +core
03 Expanding rivet 1 51111964186 $0.37
04 Hex bolt 3 72118191870 $0.92
05 Hex head screw ST4,8X22-C-Z2 2 07119916944 $0.25
06 Expanding nut ST 4.8 2 63121374075 $0.23
07 Subwoofer covering GRAU 2 51438174160 $28.10
07 Subwoofer covering ANTHRAZIT 2 51438174161 $28.10 +core
07 Subwoofer covering MARINEBLAU 2 51438174162 $28.10 ENDED
07 Subwoofer covering SANDBEIGE 2 51468174163 $28.10
07 Subwoofer covering LAVENDELGRAU 2 51468174164 $26.23 ENDED
07 Subwoofer covering DUNKELGRUEN 2 51468174165 $26.23 ENDED
07 Subwoofer covering PASTELLGRUEN 2 51468174166 $26.23 ENDED
08 Plug housing 1 61131378116 $3.25 ENDED
only in conjunction with
08 Pin terminal 8 POL. WASSERBL 1 61138352323
only in conjunction with
-- Circular contact 2.5 0,5-1,0MM² 8 61131376191 $0.55
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
